Figure 2 | Scientific Reports

Figure 2

From: Uncovering the fast, directional signal flow through the human temporal pole during semantic processing

Figure 2

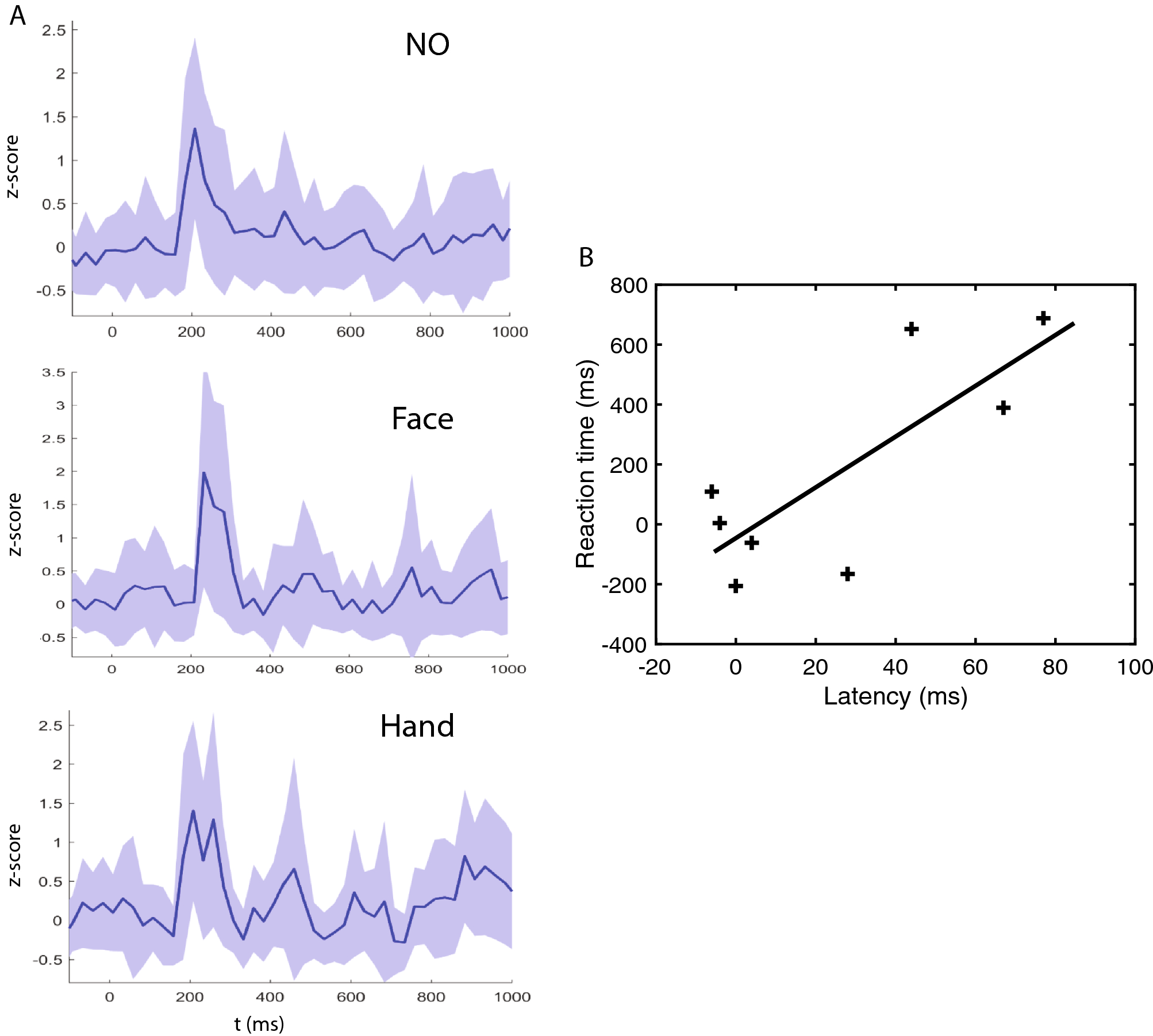

Masking effects. (A) responses of TP leads (VL and T averaged) to static onset in gender task of patient P1 without mask (no), face masked (face) or hand masked (hand); (B) Increase in RT with masking as a function of increase in median latency of TP responses across 4 patients (P1, 2, 3, 7); DeltaRT: 46 ms + 8.5 DeltaLat, correlation: r = 0.79, p < 0.02. The latency was determined as the time the z-scored response crossed a threshold of 3SD relative to baseline.
