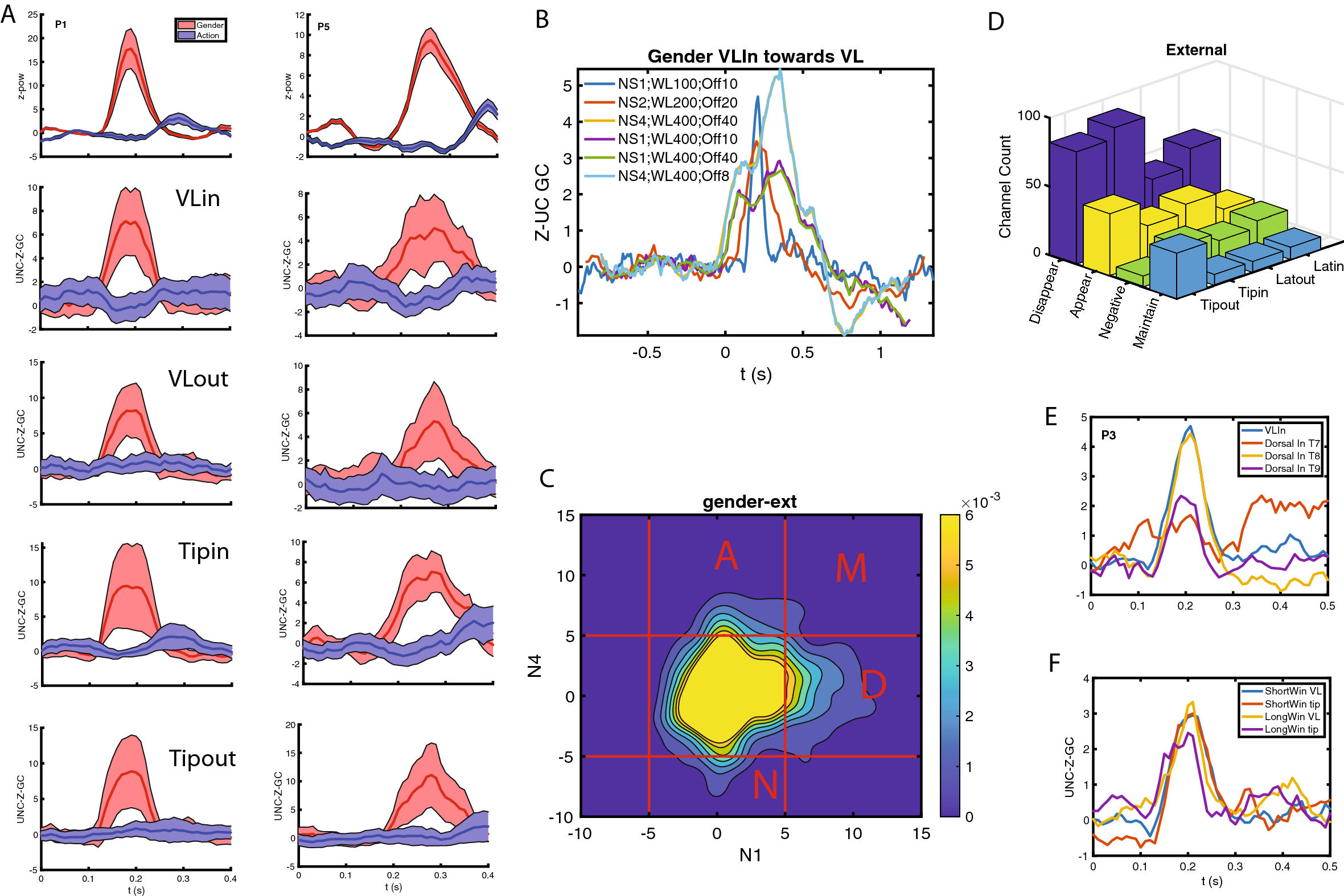

Figure 5
Functional connections of T and VL with outside cortical leads. (A) (Top panels) power of TP leads in gender (red) and action (blue) tasks for patient P1 (left) and P5 (right) compared to the time course of NS1 uGCs in both directions (continuing from top to bottom) with VL (VLin, VLout) and T (Tipin, Tipout); Full line mean, hatching 1STD; notice the shift to the right of all curves in P5 relative to P1. (B) time course of VLin uCG for 1 ms (NS1), 2 ms (NS2) and 4 ms (NS4) sampling times and max lag 4 samples in patient P5. Same conventions as Fig. 3C. (C) Joint distribution of NS1 (abscissa) and NS4 (ordinate) uGC linking T and VL with outside leads in either direction in gender task. Same conventions as in Fig. 3D. (D) Distribution of the four strong functional connection types for the four anatomical types of outside connections. (E) time course of NS1 uGC from VLin leads to 3 dorsal TP leads (red, yellow, purple) compared to average VLin NS1 uGC (blue) in patient P3. (F) time course of VLin (blue, yellow) and Tipin (red, purple) uGCs NS1 for short (blue, red) and long (yellow, purple) stimulus presentations also in P3.
