Figure 5
From: Concurrent dilution and amplification effects in an intraguild predation eco-epidemiological model

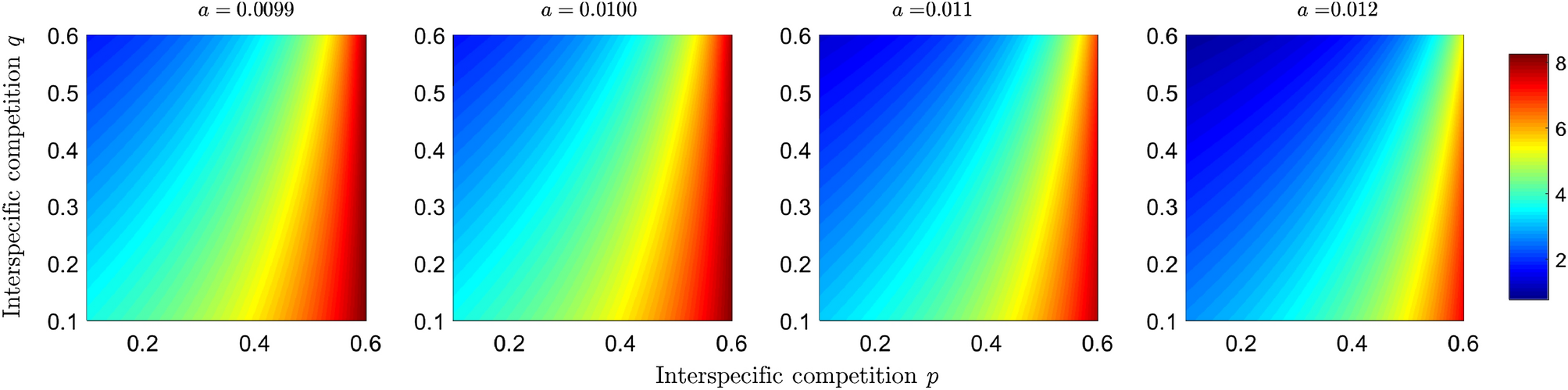

Effect of competition and predation on the basic reproductive number of the disease in the preys. Simulations plot the \(R_0^{(2,2)}\) given in Eq. (4) as a function of the competition parameters p and q under different scenarios of predation efficiency a, where \((q,p)\in [0.1,0.6]\times [0.1,0.6]\). The color bar shows the numerical value of the basic reproductive number.
