Figure 15
From: Assessment of the impacts of climat change on water supply system pipe failures

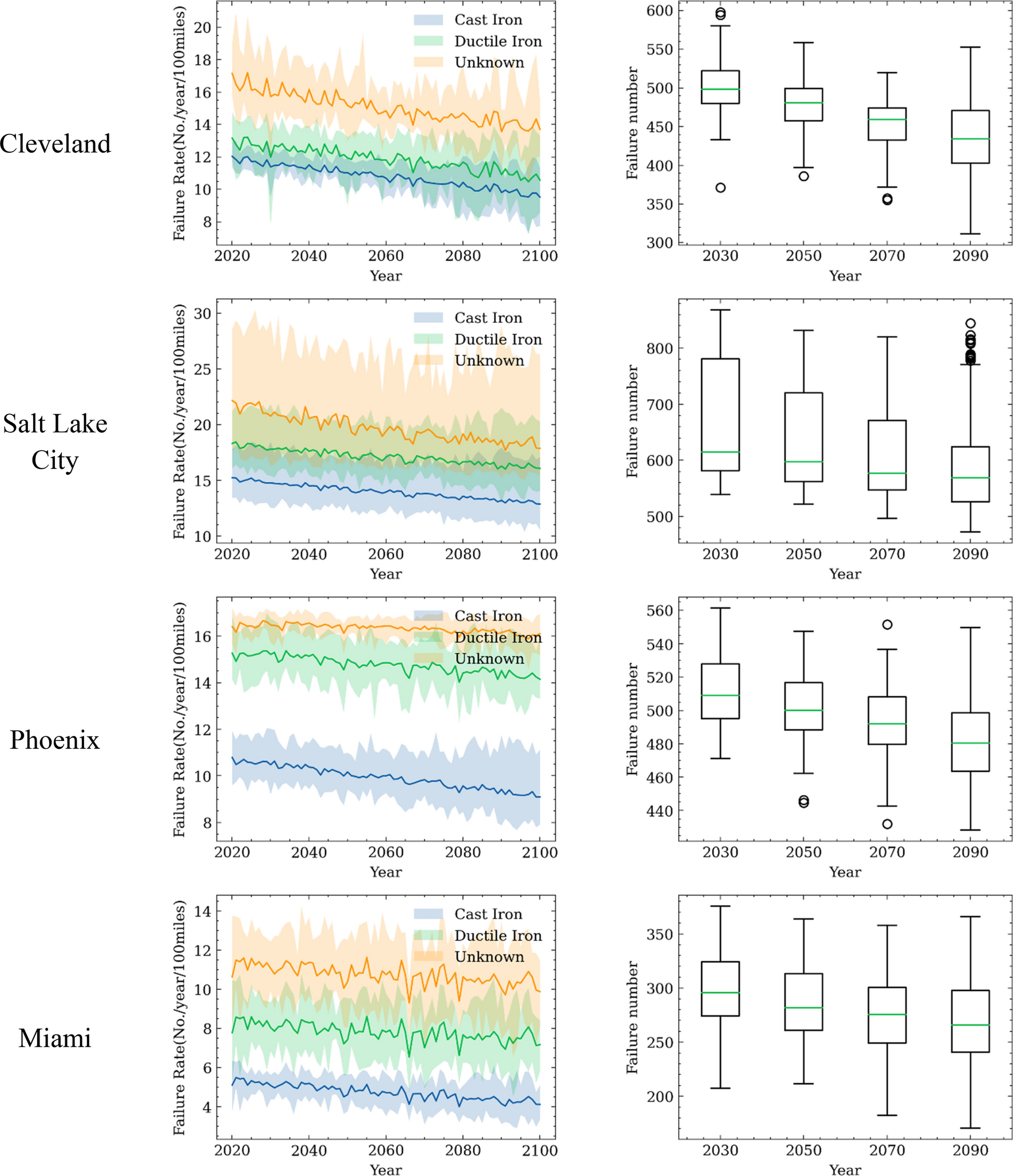

Predicted water system failure for a stationary water system subjected to climate change over 80 years (2020–2100) : left) the failure rates of water pipes in the stationary system made of different materials; right) statistics of total number of failures in the water system grouped into 20-year bins.
