Figure 5
From: Controls on fracture openness and reactivation in Forsmark, Sweden

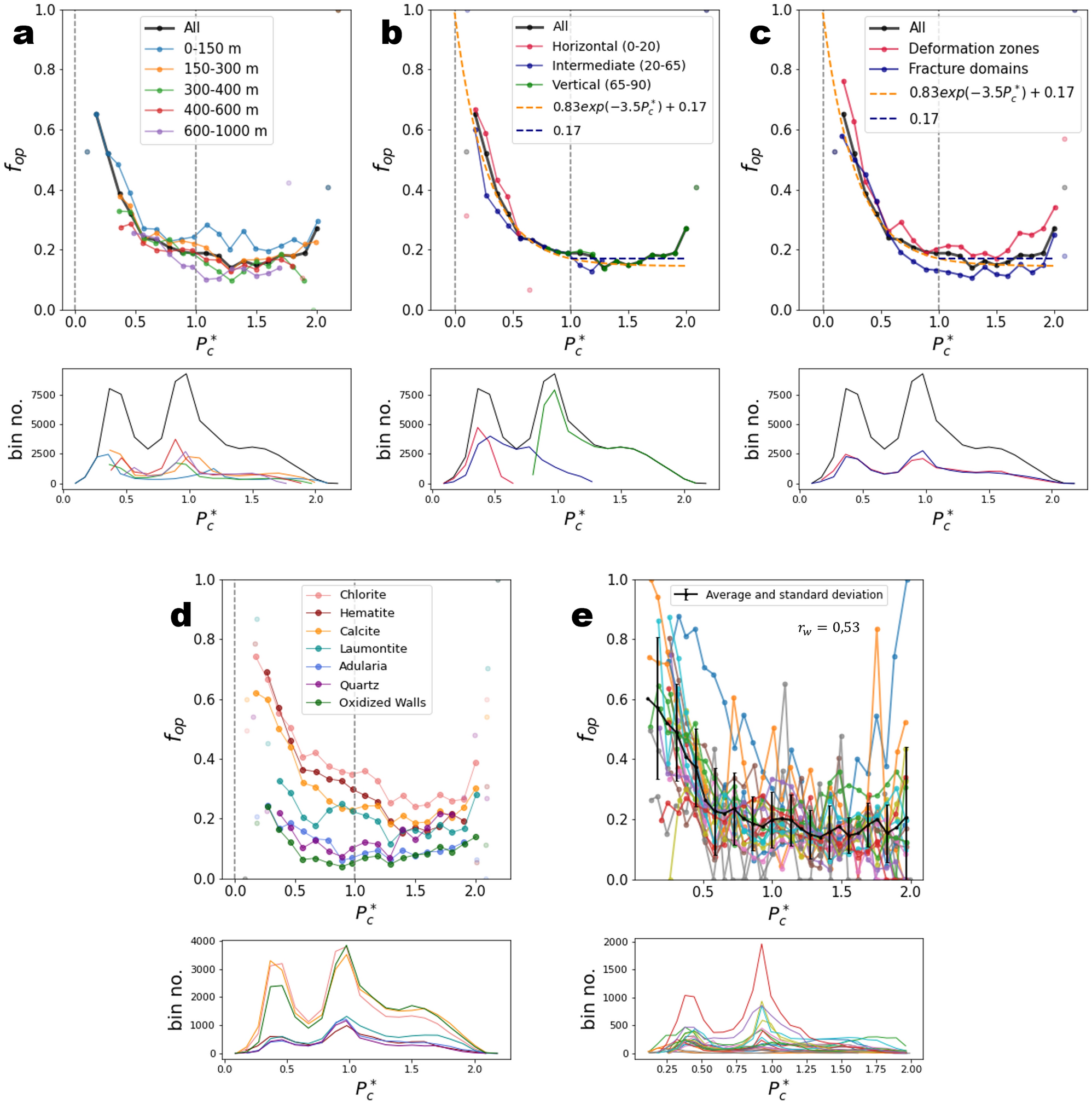

Openness as a function of the failure overpressure metric \({P}_{c}^{*}\) (dimensionless). The results are presented as a function of (a) depth range, (b) dip range, (c) structural domains, (d) filling minerals, and (e) by borehole. Vertical grey dashed lines indicate hydrostatic (\({P}_{c}^{*}=0\)) and lithostatic pressures (\({P}_{c}^{*}=1\)). Lower subplots indicate the number of fractures in each bin. Bin size is 0.1.
