Figure 2
From: Morphological and morphometric study of the scapulae of Korean wild deer

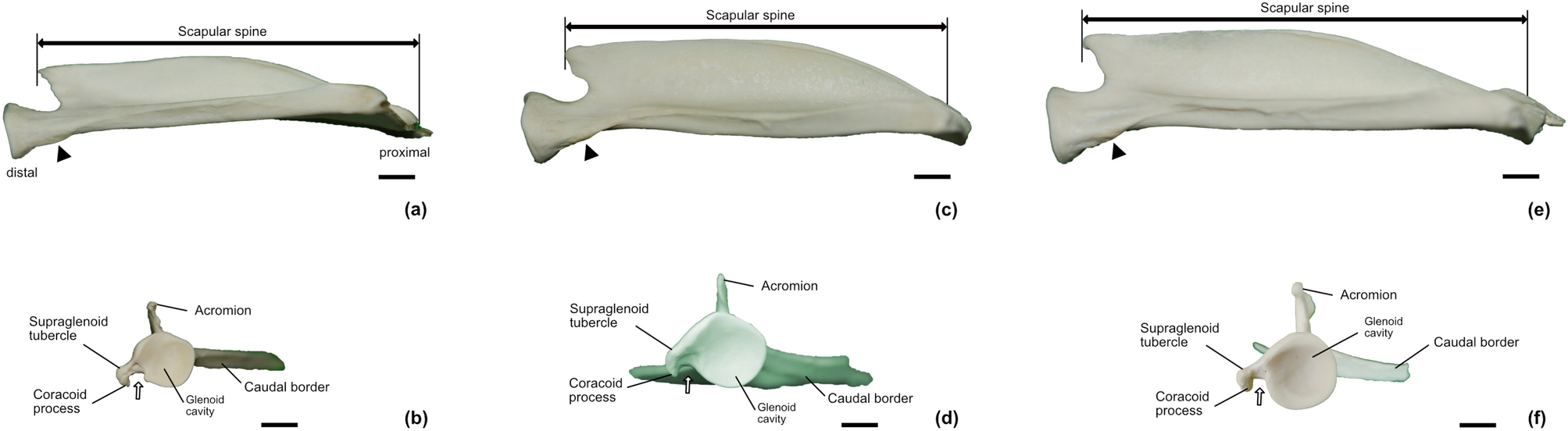

Scapula of Korean wild deer; (a, b) Korean water deer(Hydropotes inermis argyropus), (c, d) Jeju roe deer (Capreolus pygargus jejuensis, (e, f) mainland roe deer (Capreolus pygargus tianschanicus). The tuberosity of the scapular neck (arrowhead) and the glenoid notch (white arrow) are shown. The coracoid process extended medially from the tip of the supraglenoid tubercle. Caudal view (a,c,e) and ventral view (b, d, f). Scale bar = 1 cm.
