Figure 3
From: Morphological and morphometric study of the scapulae of Korean wild deer

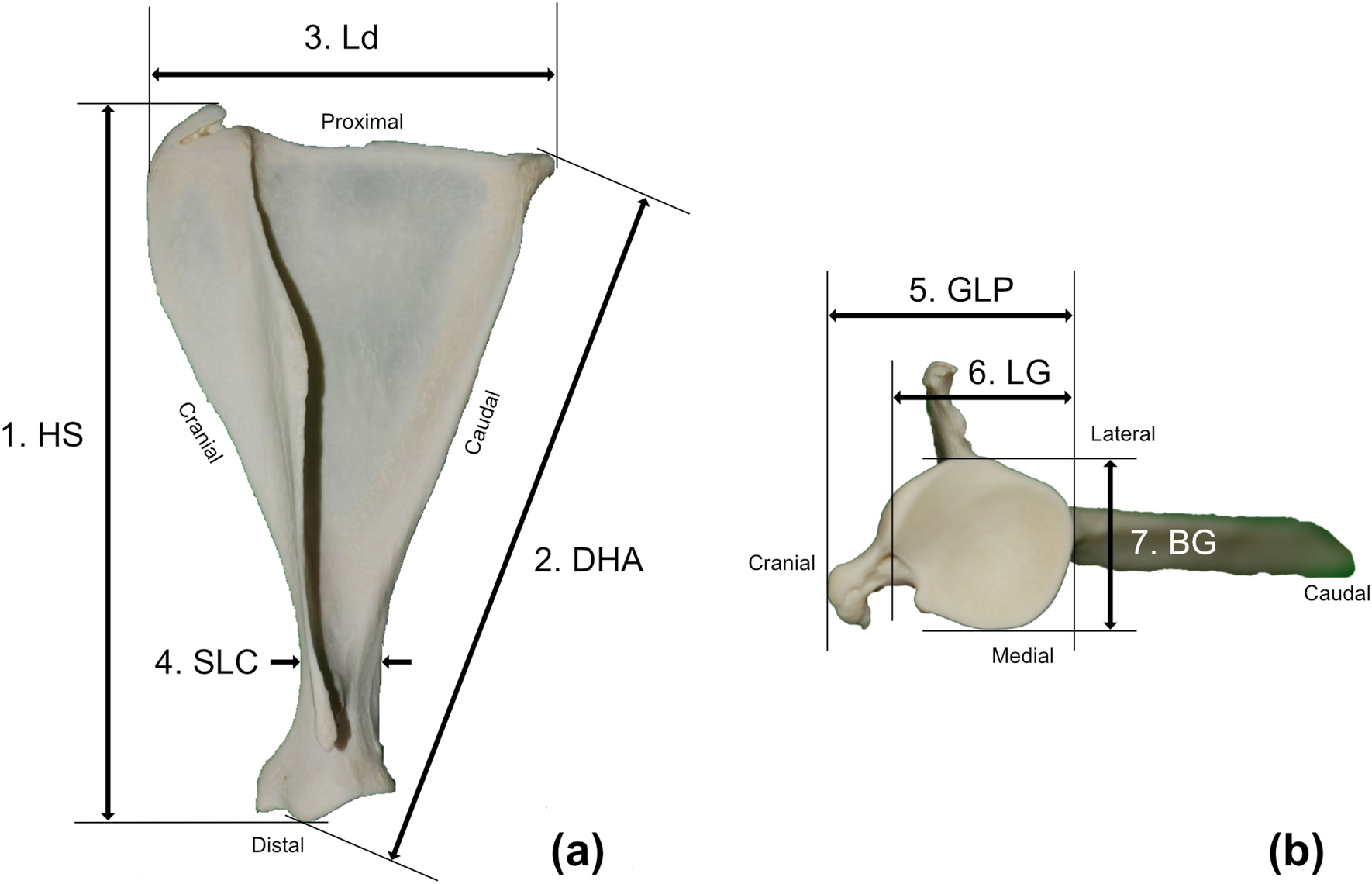

Scapular measurements in three Korean wild deer: Korean water deer (Hydropotes inermis argyropus), and Siberian roe deer that inhabit Jeju Island (Jeju roe deer; Capreolus pygargus jejuensis) and the Korean peninsula (mainland roe deer; Capreolus pygargus tianschanicus). 7(a); lateral view and 7(b); ventral view of the scapula in H. i. argyropus. HS: height, DHA: diagonal height, Ld: longest dorsal length, SLC: shortest length of the collum scapulae, GLP: longest length of processus articularis, LG: length of the glenoid cavity, BG: breadth of the glenoid cavity.
