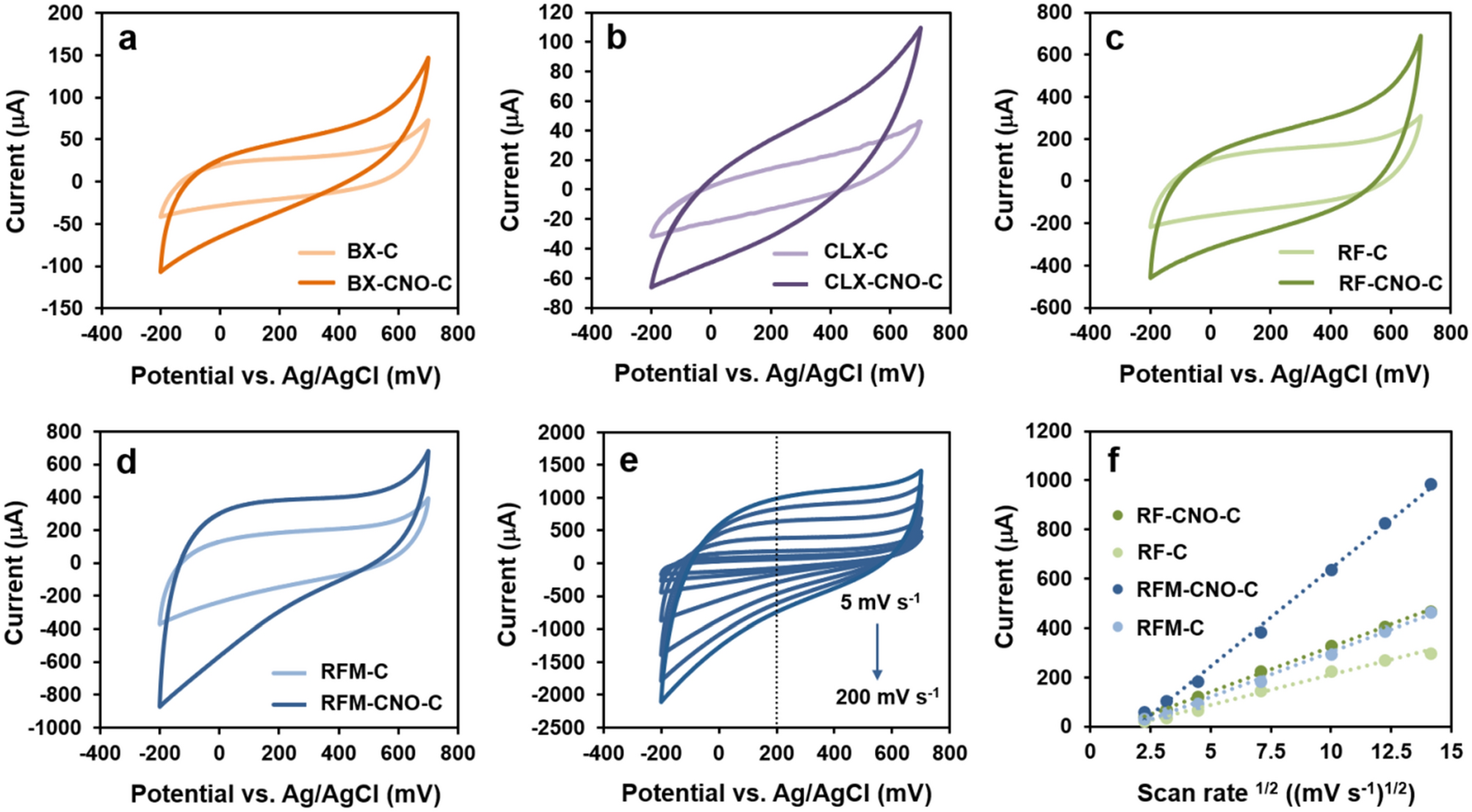

Figure 9
CV measurements were performed in a three-electrode configuration. (a–d) CV curves of all synthesized materials after pyrolysis recorded in 0.1 M KOH at 50 mV s−1. (e) CV curves recorded at the different scan rates for RMF-CNO-C. (f) Dependence of the current vs. the square root of the scan rate for the selected materials.
