From: A system that delivers an antioxidant to mitochondria for the treatment of drug-induced liver injury

Figure 1

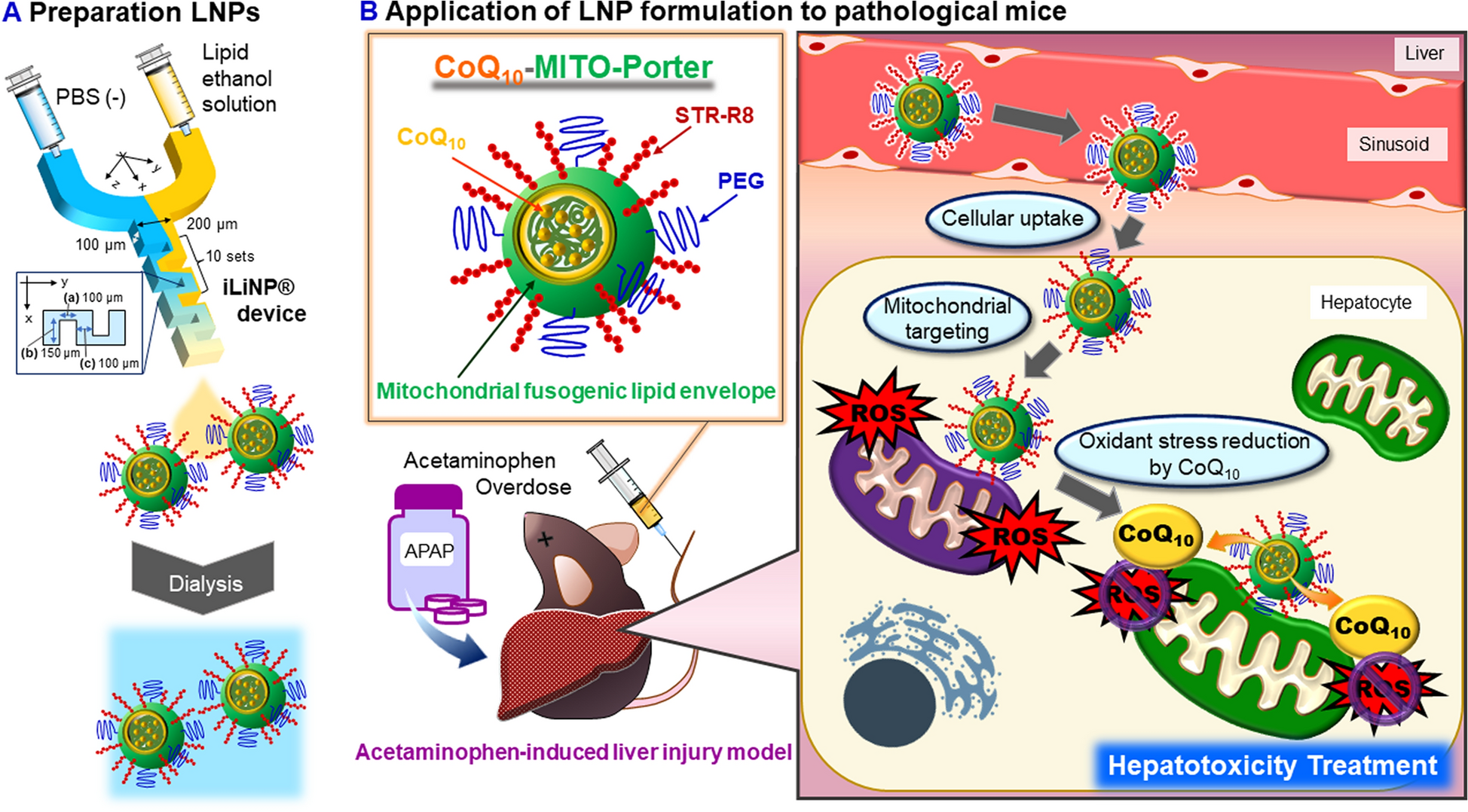

Schematic image of concept (A) of preparing CoQ10-MITO-Porter and (B) therapeutic strategy against APAP liver injury model using CoQ10-MITO-Porter. As shown in the panel (A), the iLiNP device contains the basic structure with 10 repetitions of baffle mixer structure. Standard dimensions of the baffle mixer structure were width (a) of 150 µm, depth (b) of 100 µm and interval (c) of 100 µm. APAP acetaminophen, CoQ10 coenzyme Q10, PEG polyethylene glycol, ROS reactive oxygen species, R8 octaarginine.
