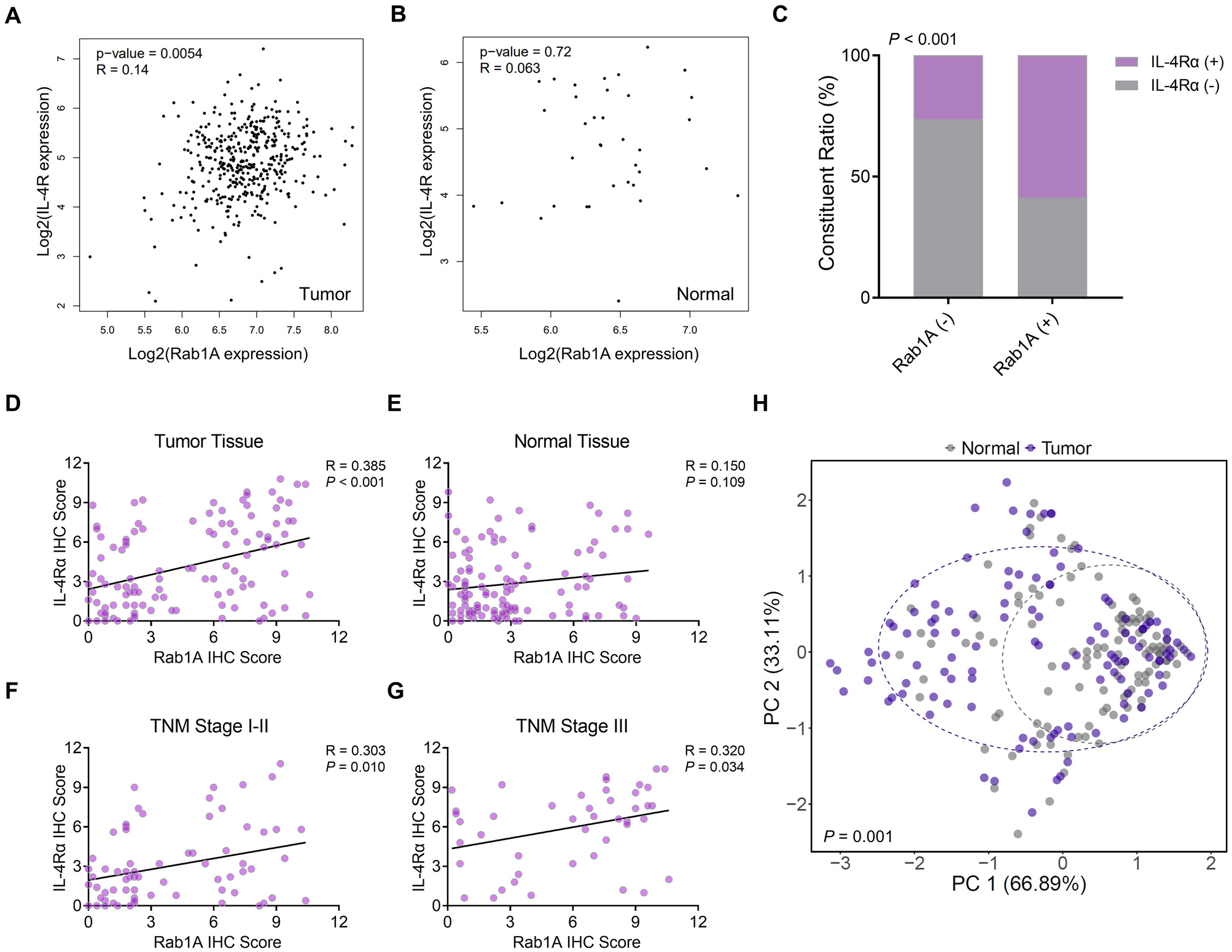

Figure 3
From: Prognosis value and positive association of Rab1A/IL4Rα aberrant expression in gastric cancer
Association of Rab1A/IL-4Rα expression in GC. (A,B) the association between Rab1A/IL-4Rα expression in TCGA datasets through the GEPIA platform in GC tissues(A) and normal tissues (B). (C) Constituent ratio depicting the correlation between Rab1A and IL-4Rα expression in GC. (D–G) The association of Rab1A with IL-4Rα expression using the IHC score in (D) GC tissues, (E) normal tissue, (F) GC with stage TNM I–II staging, and (G) GC with TNM III staging. (H) Cluster analysis of Rab1A and IL-4Rα IHC score based on GC tumor and paired normal tissues.
