Figure 3
From: Position-reconfigurable pinning for magnetic domain wall motion

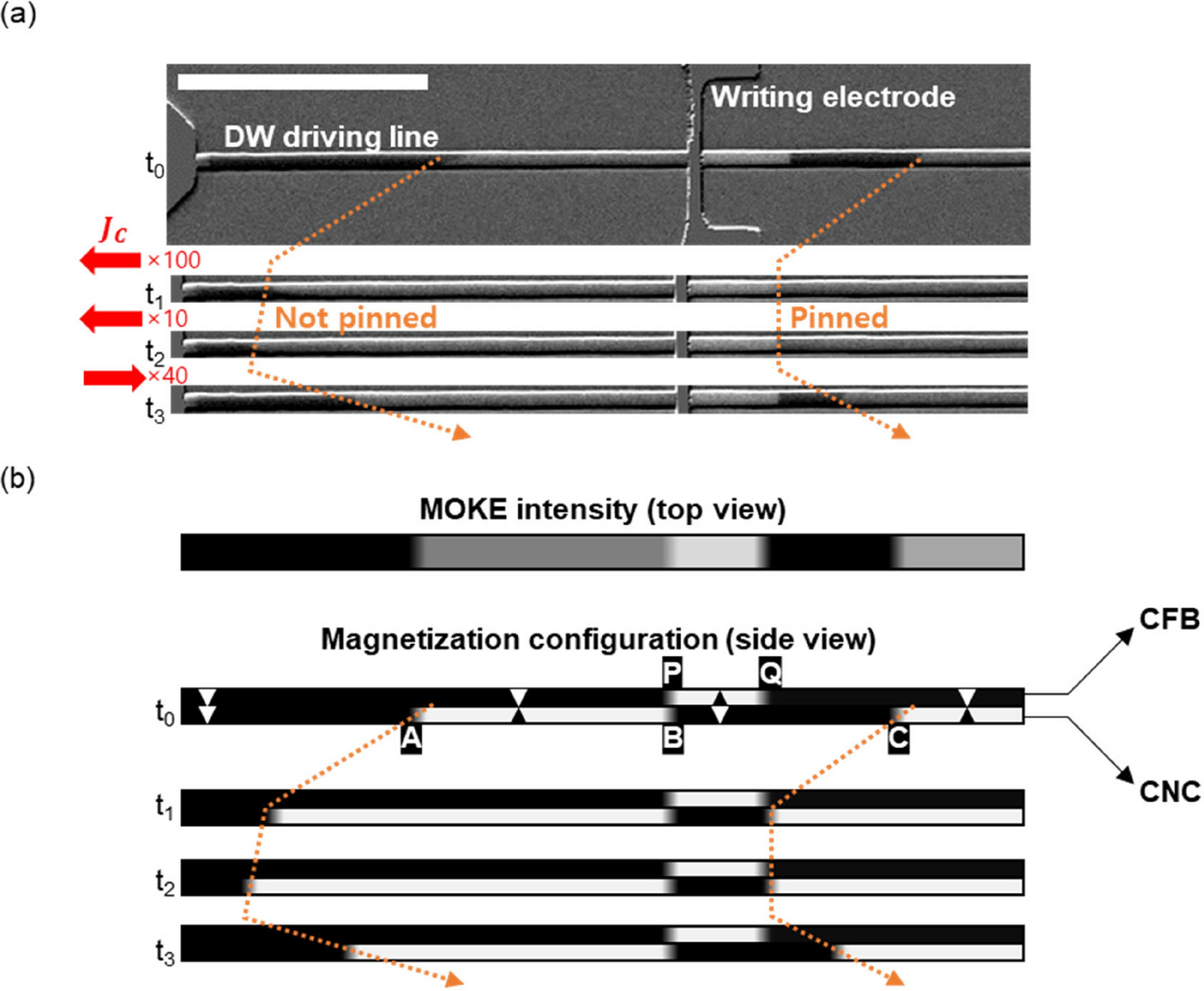

(a) Overall image of the patterned device and MOKE images during a series of current pulses. The scale bar is 50 μm. (b) Schematic illustration of magnetization configurations of each layer corresponding to the MOKE images in Fig. 3a.
