Figure 9

From: Monitoring genotoxic, biochemical and morphotoxic potential of penoxsulam and the protective role of European blueberry (Vaccinium myrtillus L.) extract

Figure 9

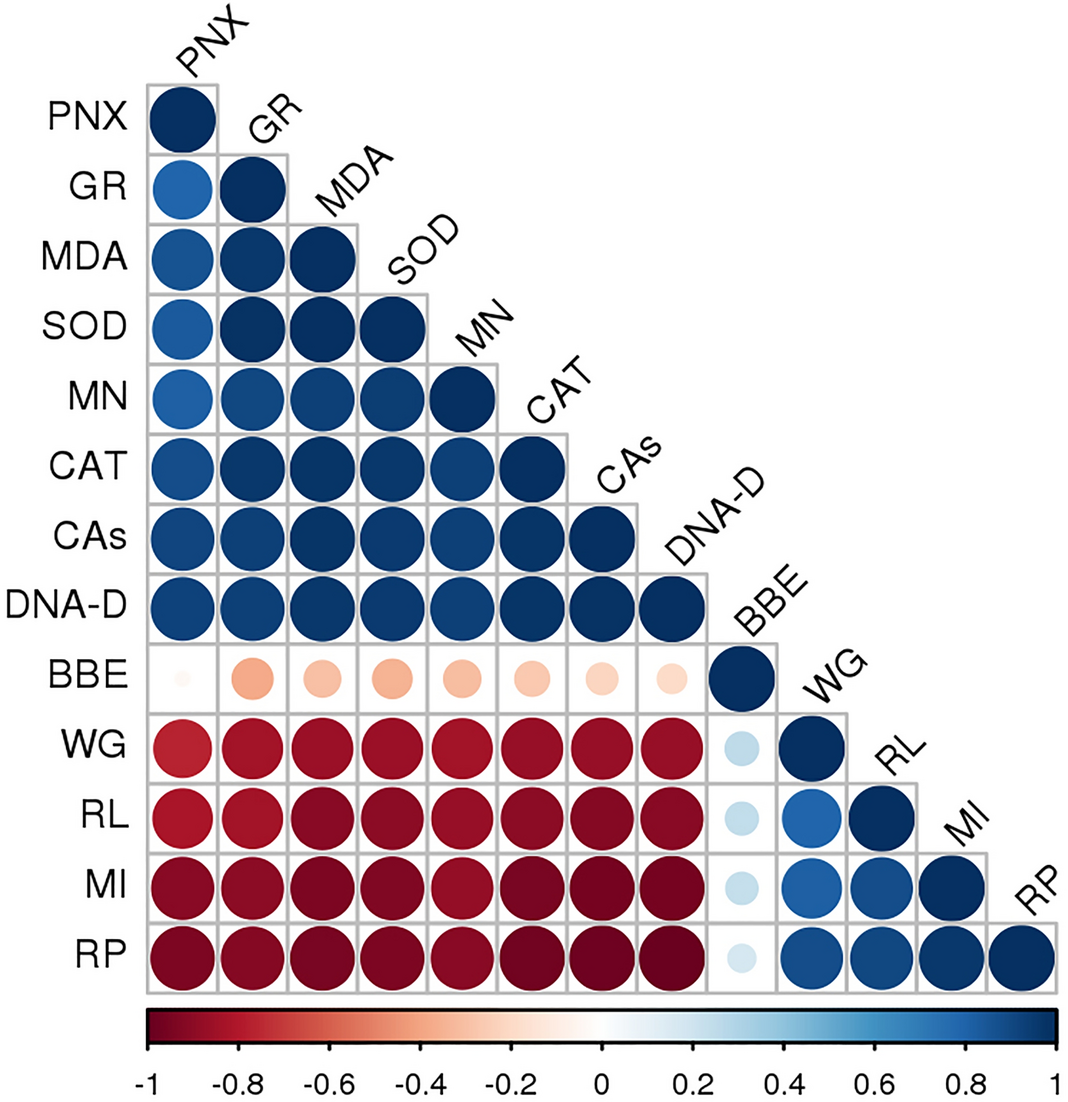

Correlations of penoxsulam and BBE doses with cytological, morphologic and biochemical analysis (PXM penoxsulam dose, GR glutathione reductase activity, MDA malondialdehyde level, SOD superoxide dismutase activity, MN micronucleus formation, CAT catalase activity, CAs chromosomal abnormality frequency, DNA-D DNA damage (arbitrary unit), BBE blue berry extract, WG weight gain, RL root length, MI mitotic index, RP rooting percentage).
