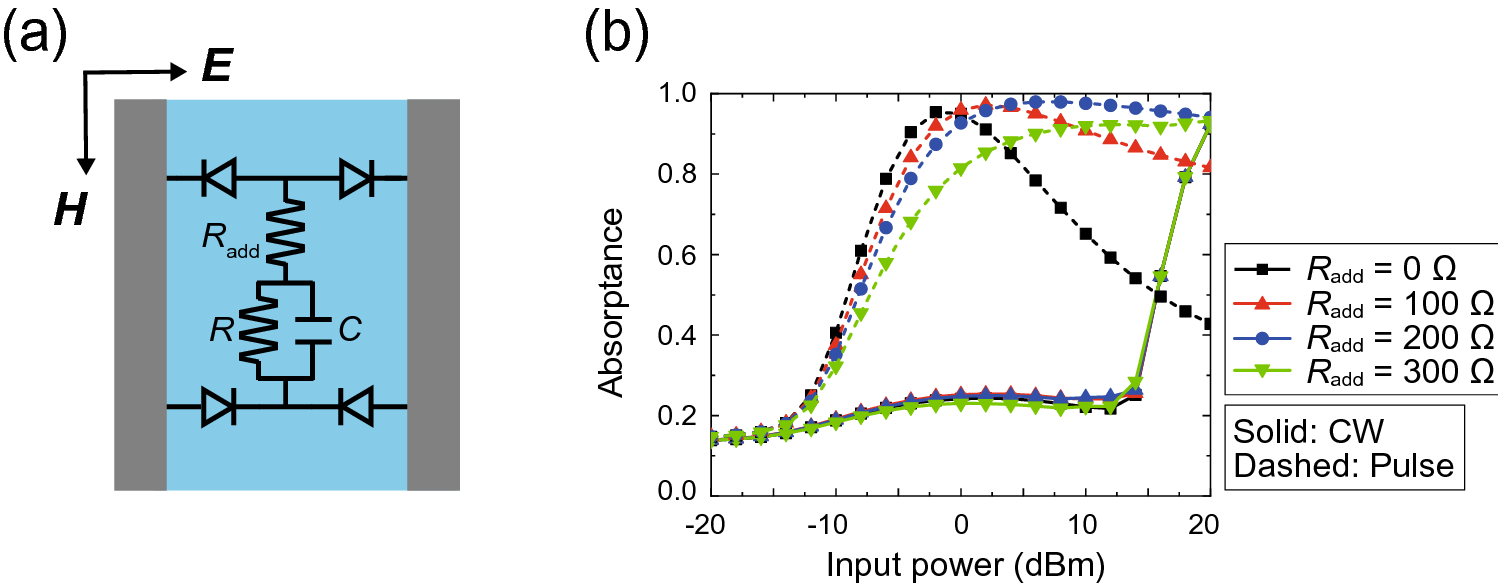

Figure 8

Use of an additional series resistance \(R_{add}\) to improve the dynamic range of the 2.8-GHz model. (a) Configuration of the circuit deployed between conductor edges. This circuit was deployed between conducting ptaches (see Fig. 1a). (b) Absorptance with various \(R_{add}\)s. The frequency and input power were fixed at 2.8 GHz and 0 dBm, respectively.
