Figure 9
From: High-performance phononic crystal sensing structure for acetone solution concentration sensing

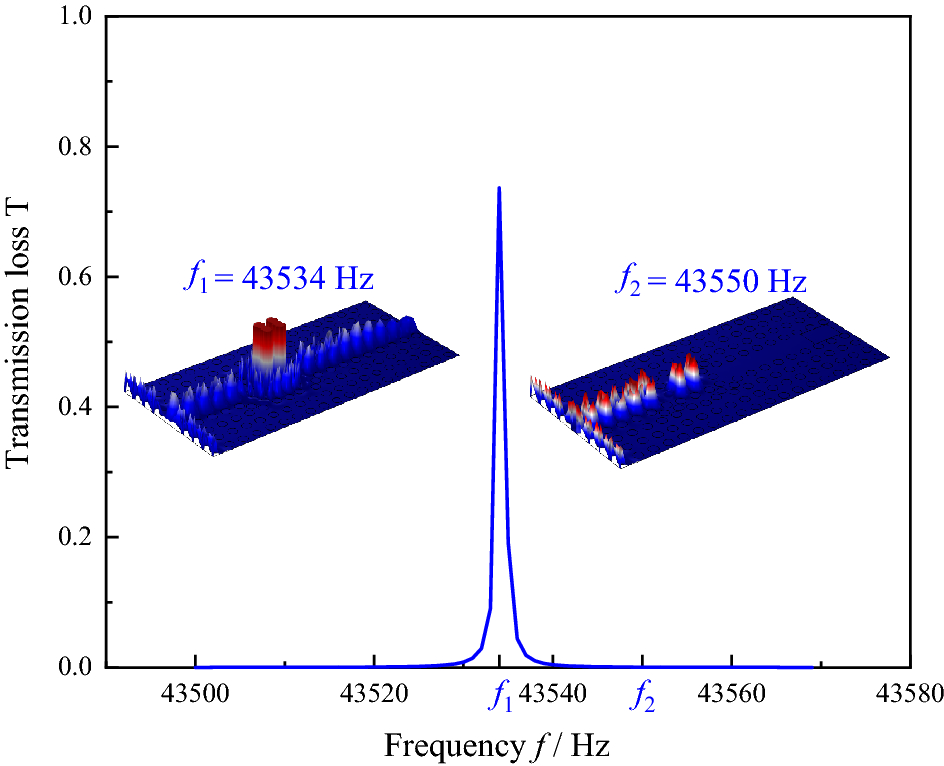

Sound field distribution in the sensor when sensing 10% solution concentration (These figures are made by COMSOL Multiphysics 6.125).
Figure 9 | Scientific Reports
