Figure 5
From: CD69 serves as a potential diagnostic and prognostic biomarker for hepatocellular carcinoma

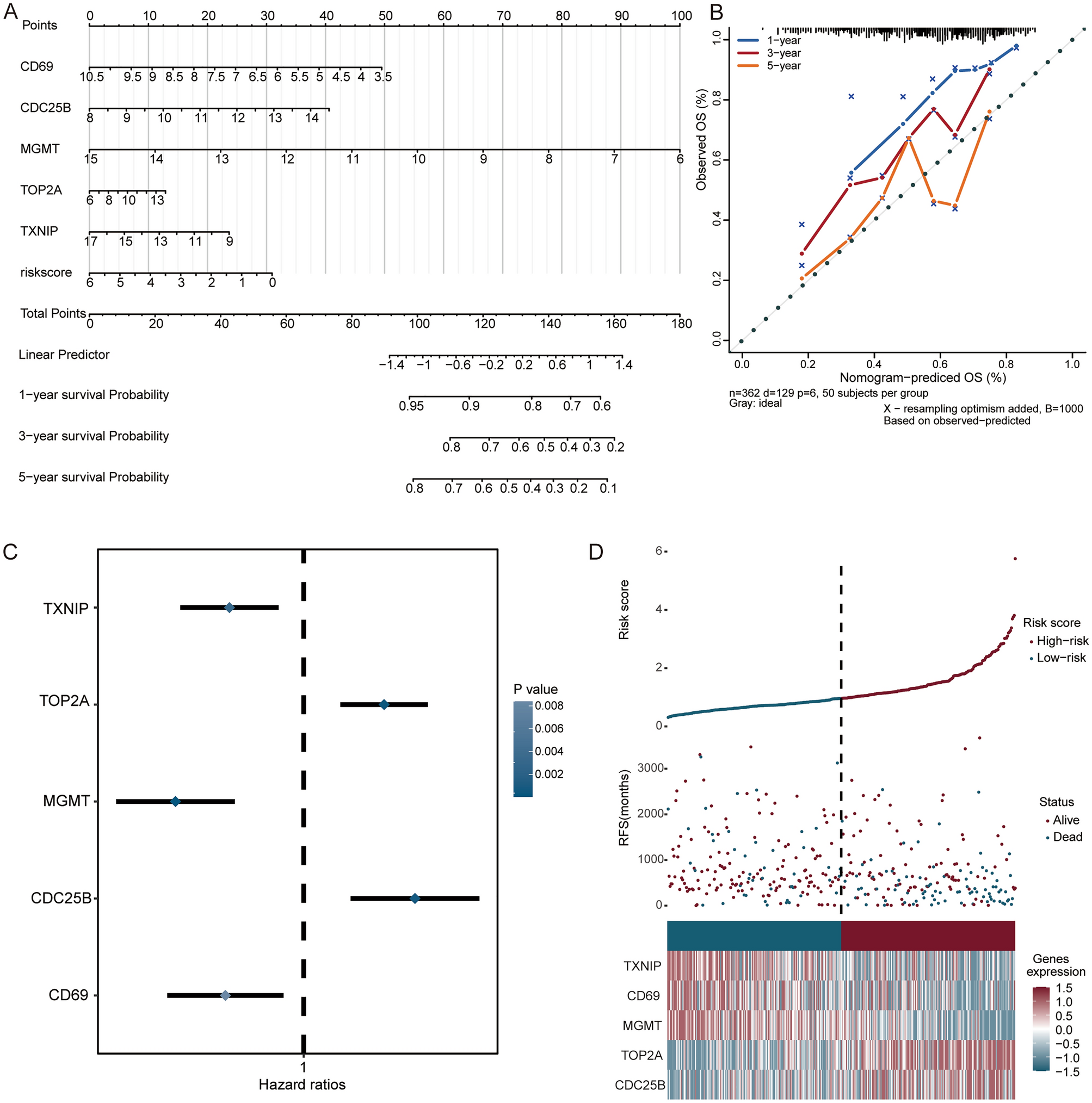

Analysis of candidate genes in TCGA. (A) Nomogram of candidate genes to predict the 1, 3 and 5-year survival probability of HCC patients. (B) Calibration curves for predicting survival probability of the nomogram. (C) Forest plot for the prognostic signature of candidate genes. (D) Distribution of risk scores of univariate Cox regression analysis, patient survival durations, and candidate genes expression. RFS recurrence-free survival.
