Figure 2

From: Chloroplast genome characterization of Uncaria guianensis and Uncaria tomentosa and evolutive dynamics of the Cinchonoideae subfamily

Figure 2

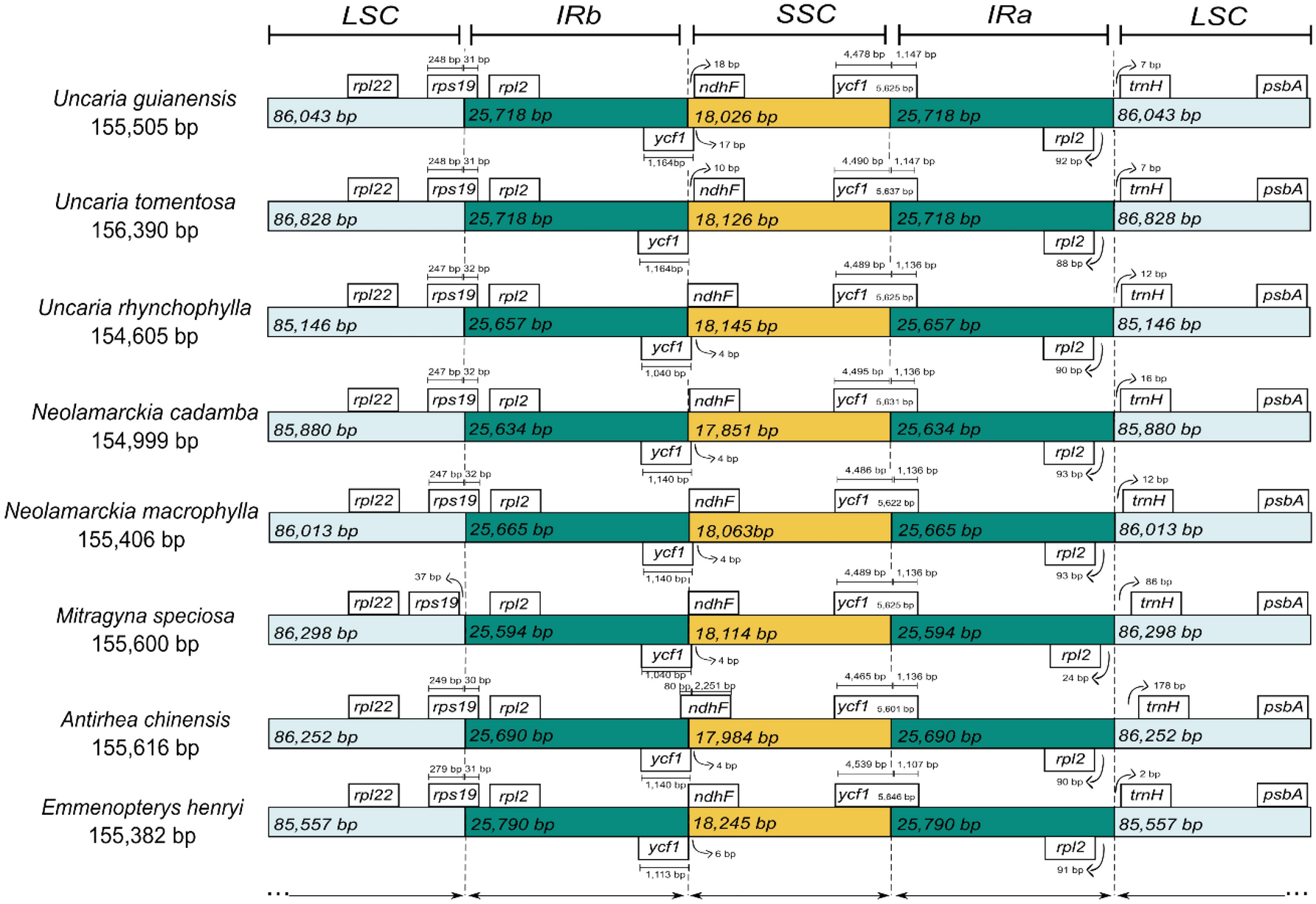

Comparison of the junction sites in the chloroplast genomes of seven species from the subfamily Cinchonoideae and one species (Emmenopterys henryi) from the sister subfamily Ixoroideae. The light blue bars represent the Large Single Copy (LSC), water green bars the Inverted Repeats (IRa / IRb) and yellow bars the Small Single Copy (SSC). The bars located at the top and at the bottom represent the genes transcribed clockwise and counterclockwise, respectively. The arrows indicate the distance, in base pairs, that the gene has surpassed or is distant from the junction sites.
