Figure 3
From: Design and experiments with a single spiral fixed depth ditching and fertilizing machine

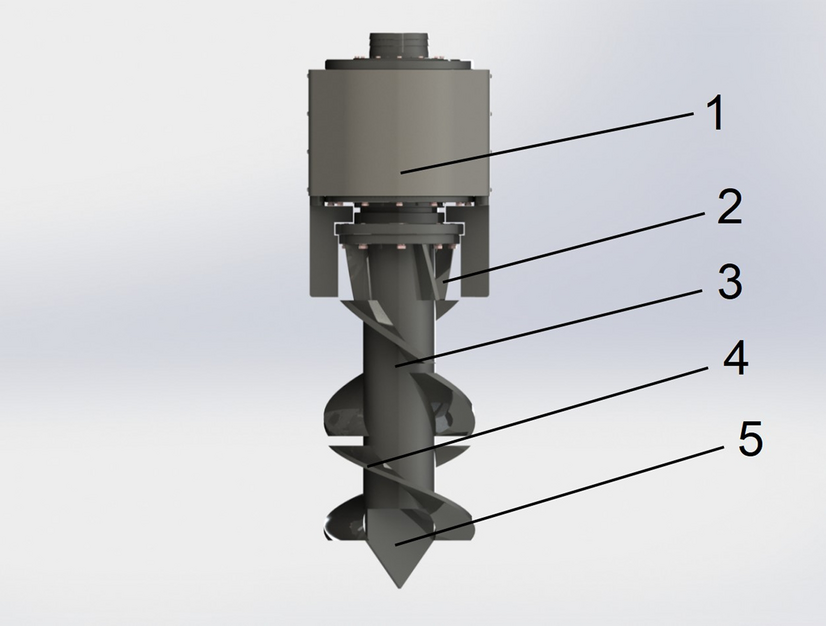

Structure schematic diagram of the spiral ditching and fertilizing, whose main constituents are as follows: 1. Transmission case, 2. Baffle plate, 3. Cutter arbor, 4. Spiral blade, and 5. Tool bit.
