Figure 3 | Scientific Reports

Figure 3

From: Towards better delineation of hydrothermal alterations via multi-sensor remote sensing and airborne geophysical data

Figure 3

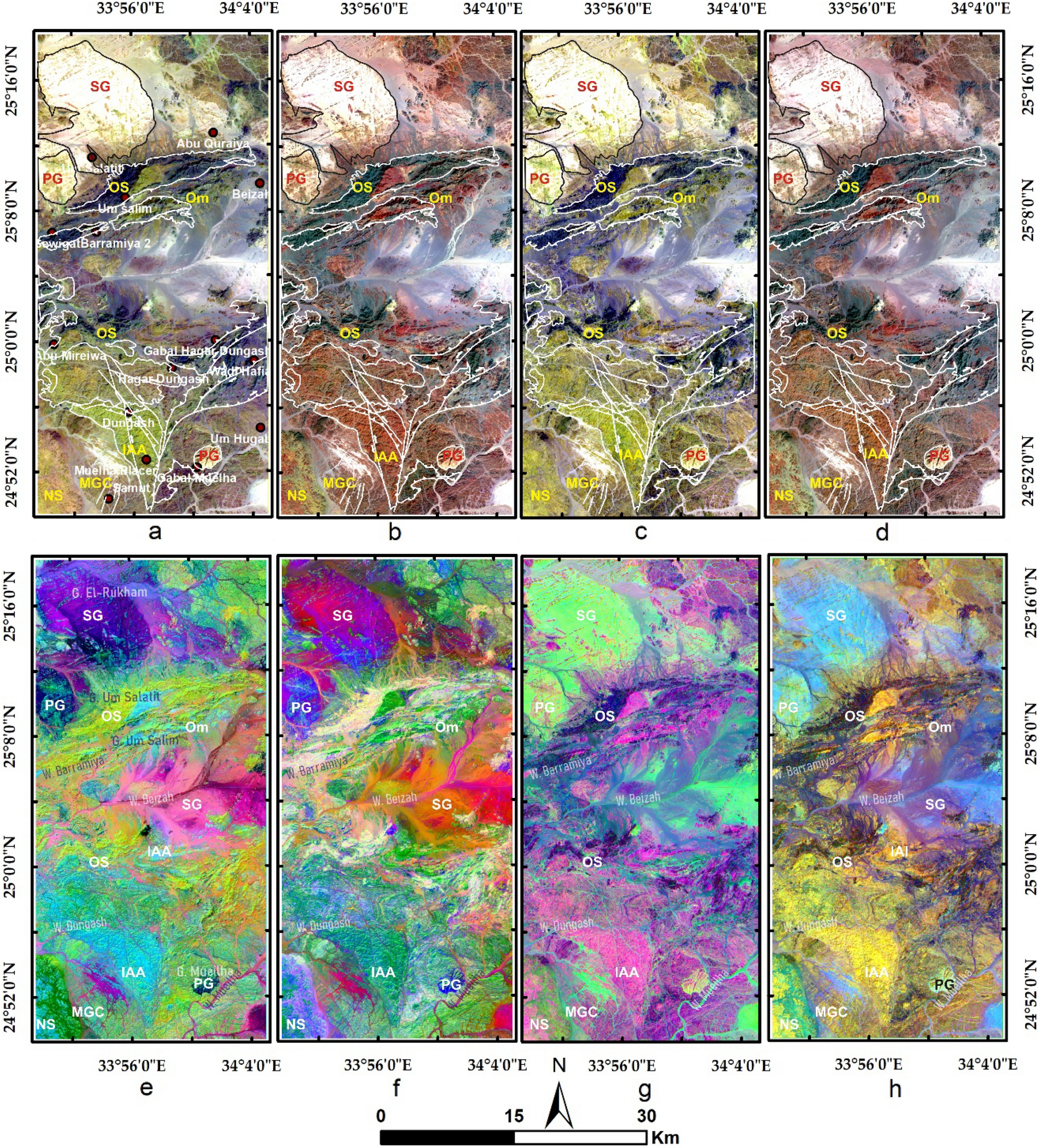

Lithological mapping by RGB FCCs of (a) ASTER 9/4/1 with distribution of the metallogenic spots within the study area, (b) Landsat OLI 7/5/3, (c) Sentinel 2 12/11/2, (d) ALI 9/6/3, and PCs of (e) ASTER 2/1/3, (f) L8 2/1/3, (g) S2 2/1/3, and (h) ALI 3/2/1. Abbreviations are given in the geological map (Fig. 1), for instance SG: syn tectonic granite, IAA: island arc association,…etc.
