Figure 9
From: Comprehensive analysis of mitophagy in HPV-related head and neck squamous cell carcinoma

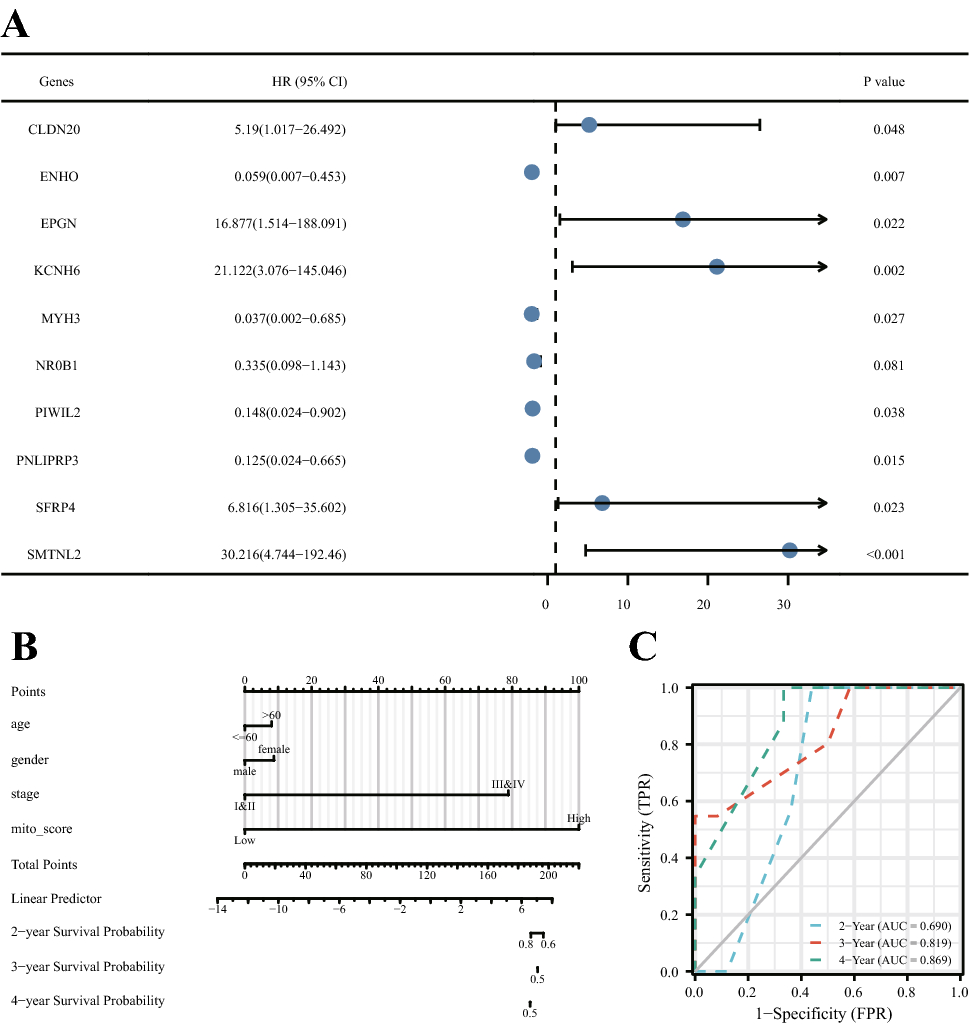

Effect of the mitophagy score on prognosis. (A) The forest map shows the multivariate Cox regression results of differentially expressed genes obtained by mitophagy regulatory gene subtypes. The first column represents the different genes, the second column represents the HR value and the corresponding 95% confidence interval, the fourth column shows the main part of the forest map (line segments, points, guides), and the fifth column represents the P value. (B) Nomogram of the correlation of the mitophagy regulatory score in the training set. (C) The ROC curve relies on time and is related to the risk score. The horizontal coordinate is the survival probability predicted by the model, the ordinate is the actual observed probability of survival.
