Figure 2

From: Plasma metabolomics of oral squamous cell carcinomas based on NMR and MS approaches provides biomarker identification and survival prediction

Figure 2

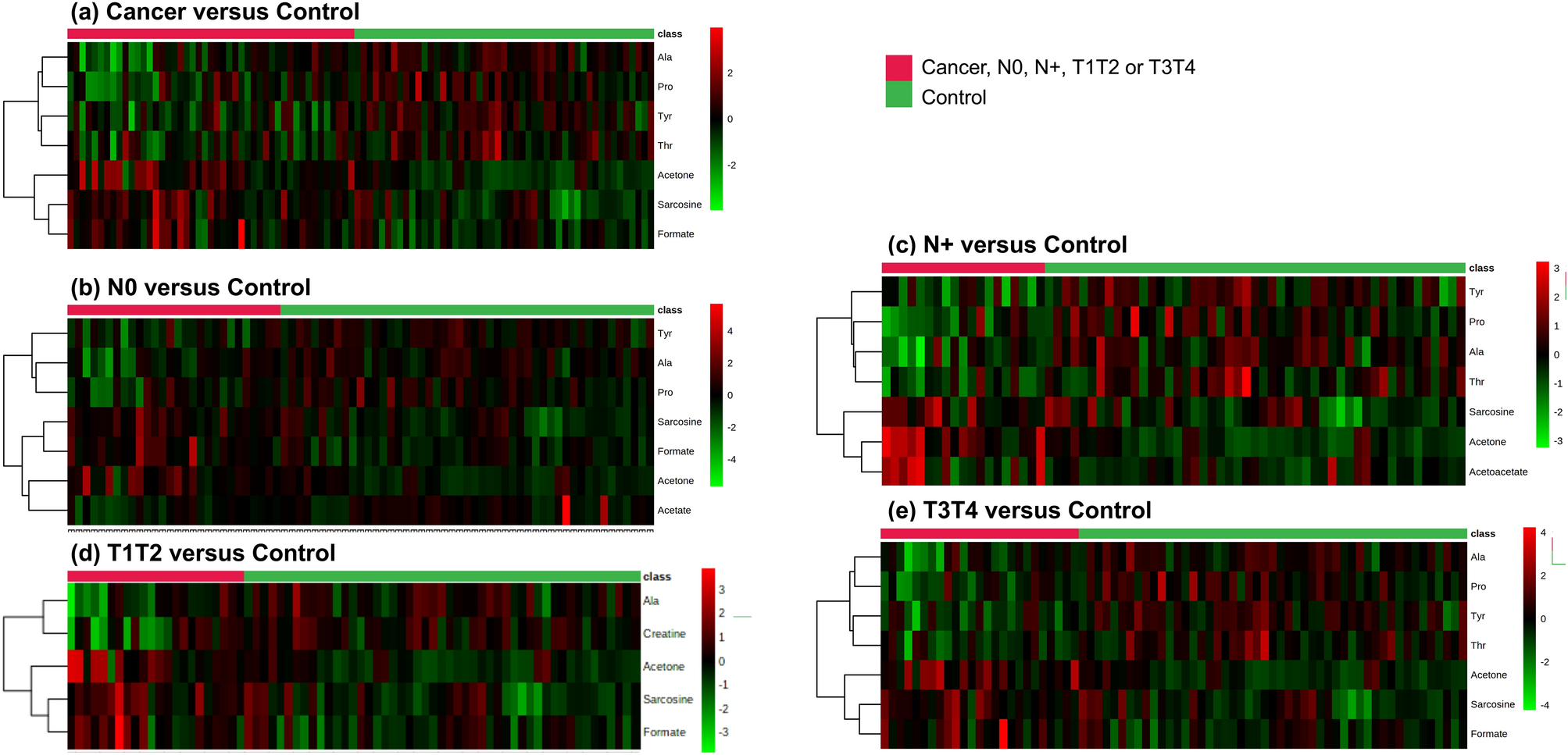

Plasma NMR metabolic profiles discriminate OSCC stage subgroups from controls. Heatmap using the top metabolites differentially expressed in (a) Cancer versus Control; (b) N0, (c) N+, (d) T1T2, (e) T3T4 versus Control. Top bar: cancer samples in red, control samples in green. Vertical bar: the colors represent the mean concentration of metabolites—red and green values indicate over- and underexpression, respectively (t-test, p < 0.05).
