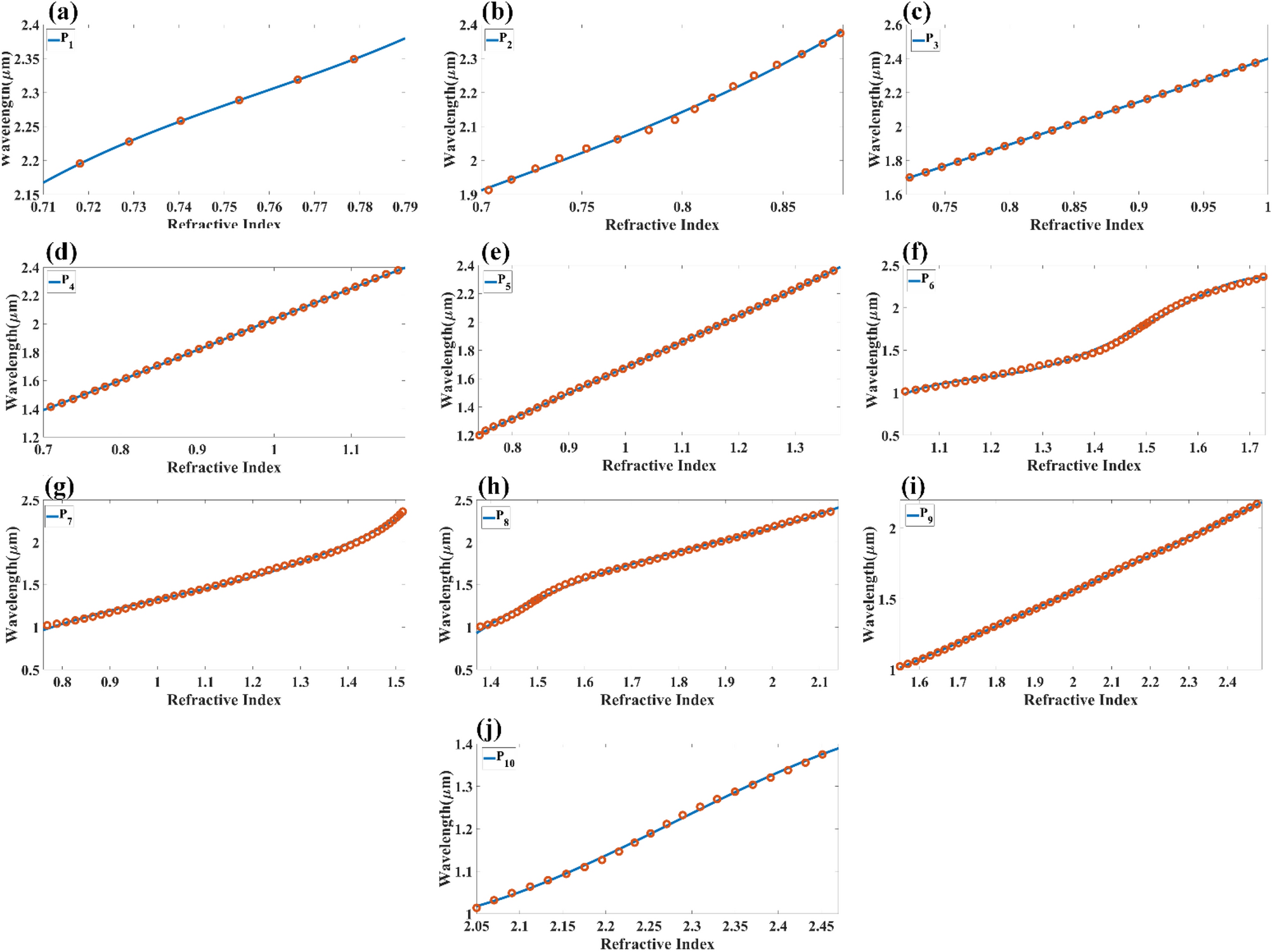

Calculated quadratic fitting curve for the equation (a–i) P1–P10 E98 derived for changes in resonating wavelength peak and its associated refractive index for aGST phase of the material. The multi-layered structure formed in this response is analyte–Ag–Si–HfO2–Si–GST–Si.
