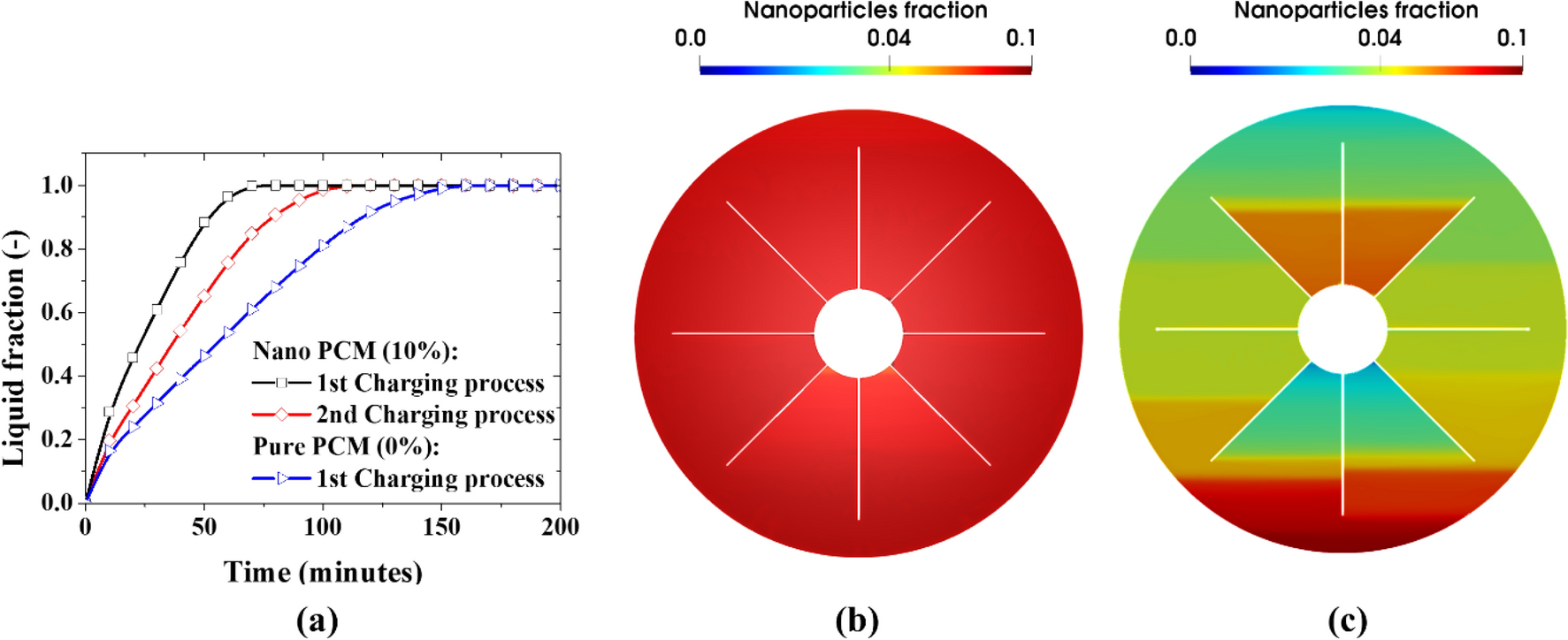

Figure 8

Comparison of two consecutive charging cycles: (a) plots of liquid fraction during the charging process, (b) nanoparticle fraction at the end of the 1st charging process, and (c) nanoparticle fraction at the end of the 2nd charging process.
