Figure 4
From: Effects of antibiotic interaction on antimicrobial resistance development in wastewater

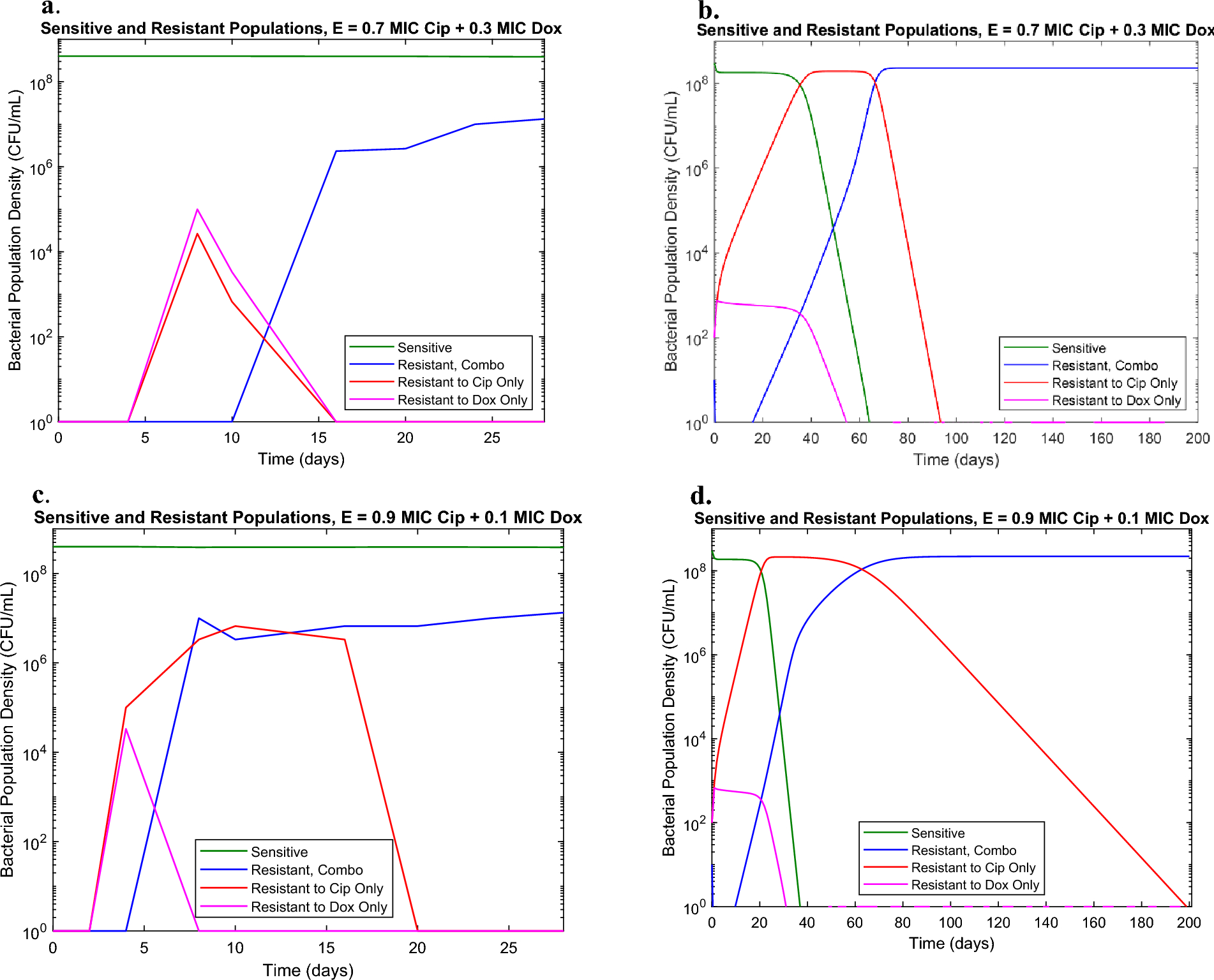

(a) eVOLVER results for combination of 0.3 MIC Doxycycline and 0.7 MIC Ciprofloxacin in eVOLVER in absence of interaction (b) Model prediction for combination of 0.3 MIC Doxycycline and 0.7 MIC Ciprofloxacin in eVOLVER with antibiotic ratio dependent model adjustments (c) eVOLVER results for combination of 0.1 MIC Doxycycline and 0.9 MIC Ciprofloxacin in eVOLVER in absence of interaction (d) Model prediction for combination of 0.1 MIC Doxycycline and 0.9 MIC Ciprofloxacin in eVOLVER with antibiotic ratio dependent model adjustments.
