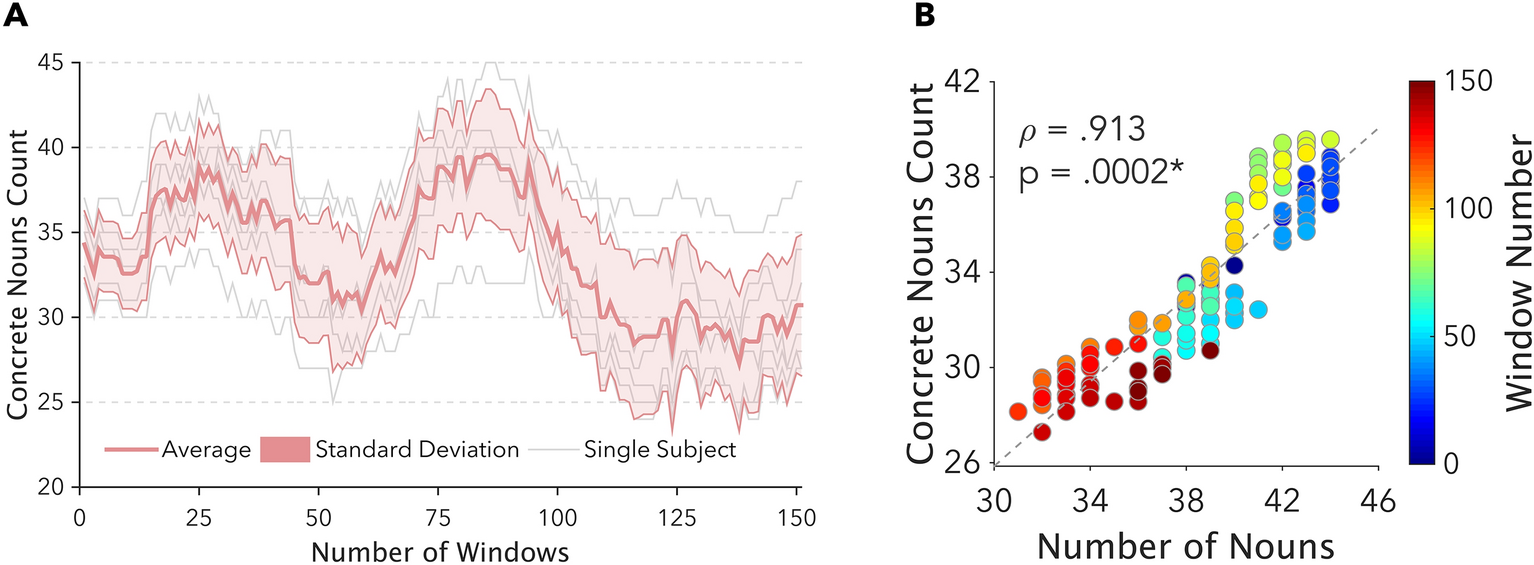

Figure 3
From: Information load dynamically modulates functional brain connectivity during narrative listening
Panel (A) depicts the results for the behavioral experiment: here, the originally written narrative was split into 2 s-lasting segments and subjects were asked to count the number of concrete nouns in each part. The thick red line shows the timecourse of nouns density averaged across all subjects, while the red shaded area represents the standard deviation for this estimate and grey thin lines indicate single-subject data. The similarity between this behavioral estimate of nouns distribution over time and the number of nouns is shown in Panel (B), reporting the significant positive correlation between these measures (p = 0.0002). For each dot, color codes window number.
