Figure 4
From: Socio-ecological impact of monogenetic volcanism in the La Garrotxa Volcanic Field (NE Iberia)

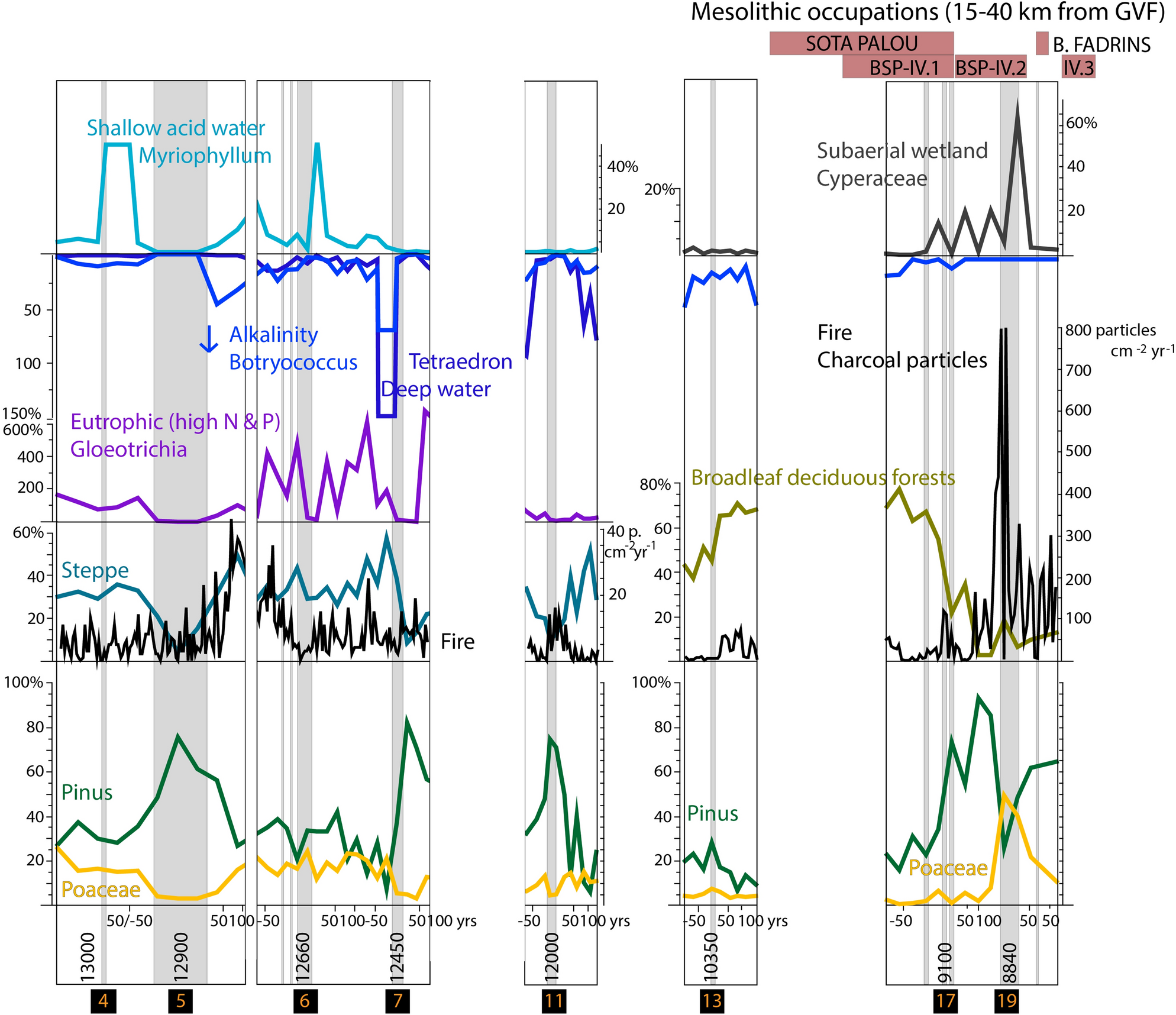

Multi-proxy diagram showing environmental shifts in relation to selected tephra. Data is plotted on a depth scale (cm) and grey shadings indicate tephra deposition events. Occupation layers from Late Mesolithic sites in the region (15–40 km from the La Garrotxa Volcanic Field) are shown in the top-right corner: Sota Palou (10,200–9100 cal BP), Bauma del Serrat del Pont IV.1 (9400–9100 cal BP), IV.2 (9100–8800 cal BP), IV.3 (8600–8400 cal BP), Bauma dels Fadrins (8700 cal BP).
