Figure 4
From: Novel genetically engineered mouse models for clear cell renal cell carcinoma

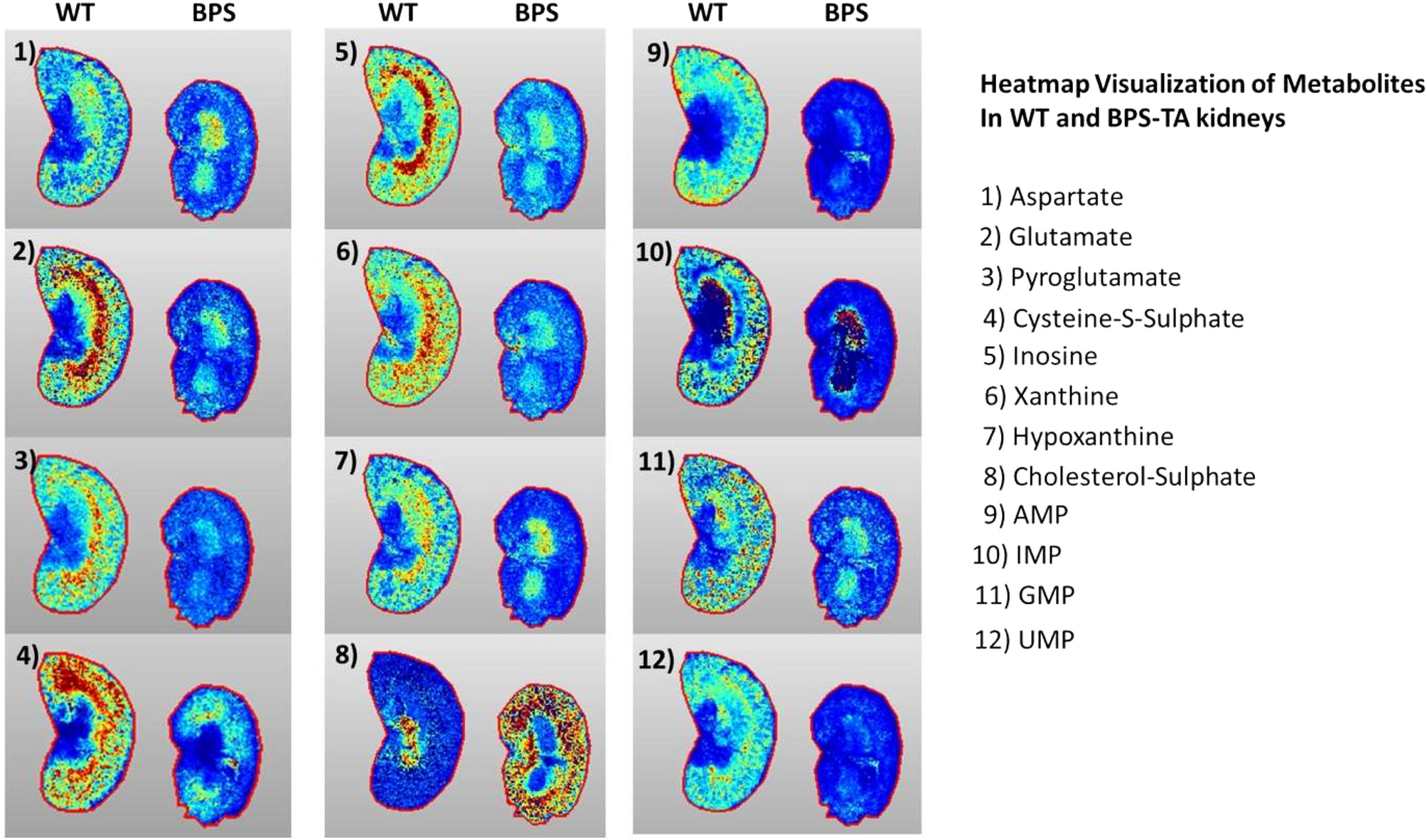

Spatial Distribution of Amino Acids, Purines, and Cholesterol Sulfate in the Wt vs. BPS Kidneys by MALDI-IMS. Heatmaps indicate the relative levels of various purines, amino acids, and cholesterol sulfate imaged from two mice of each genotype. Quantification as determined by MALDI-IMS. Note that red = a high level compared to deep blue, a low level of each metabolite. This figure was compiled in Microsoft Powerpoint.
