Figure 2
From: Proteomic analysis of the effect of hemin in breast cancer

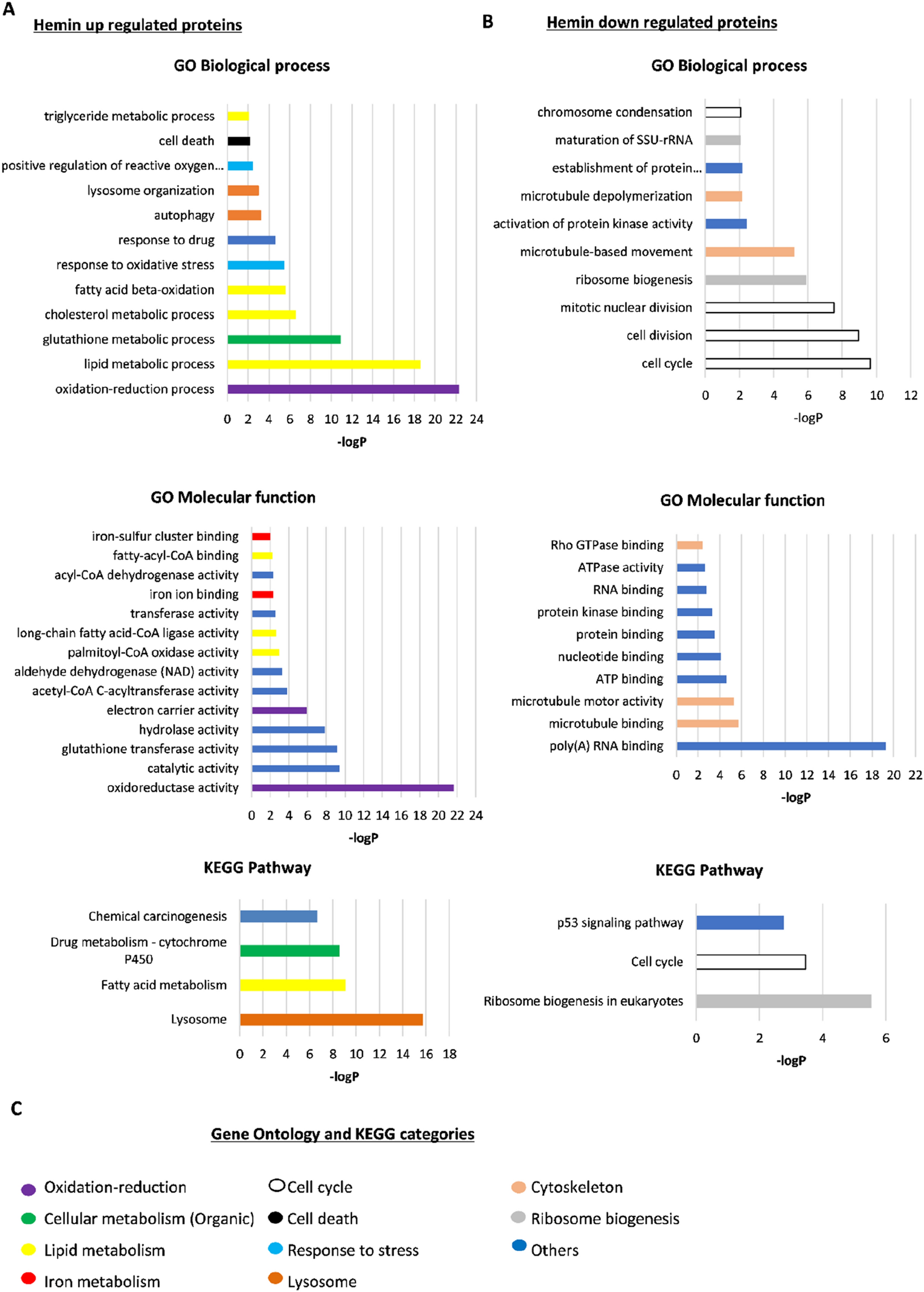

Gene ontology (GO) and Kyoto Encyclopaedia of Genes and Genomes (KEGG) analysis. (A) Hemin up-regulated proteins classified according to GO-biological process, GO-molecular function and KEGG dataset pathway. (B) Hemin down-regulated proteins classified equally as (A). (C) Colour code of the eleven global categories for GO-biological process, GO-molecular functions and KEGG annotations.
