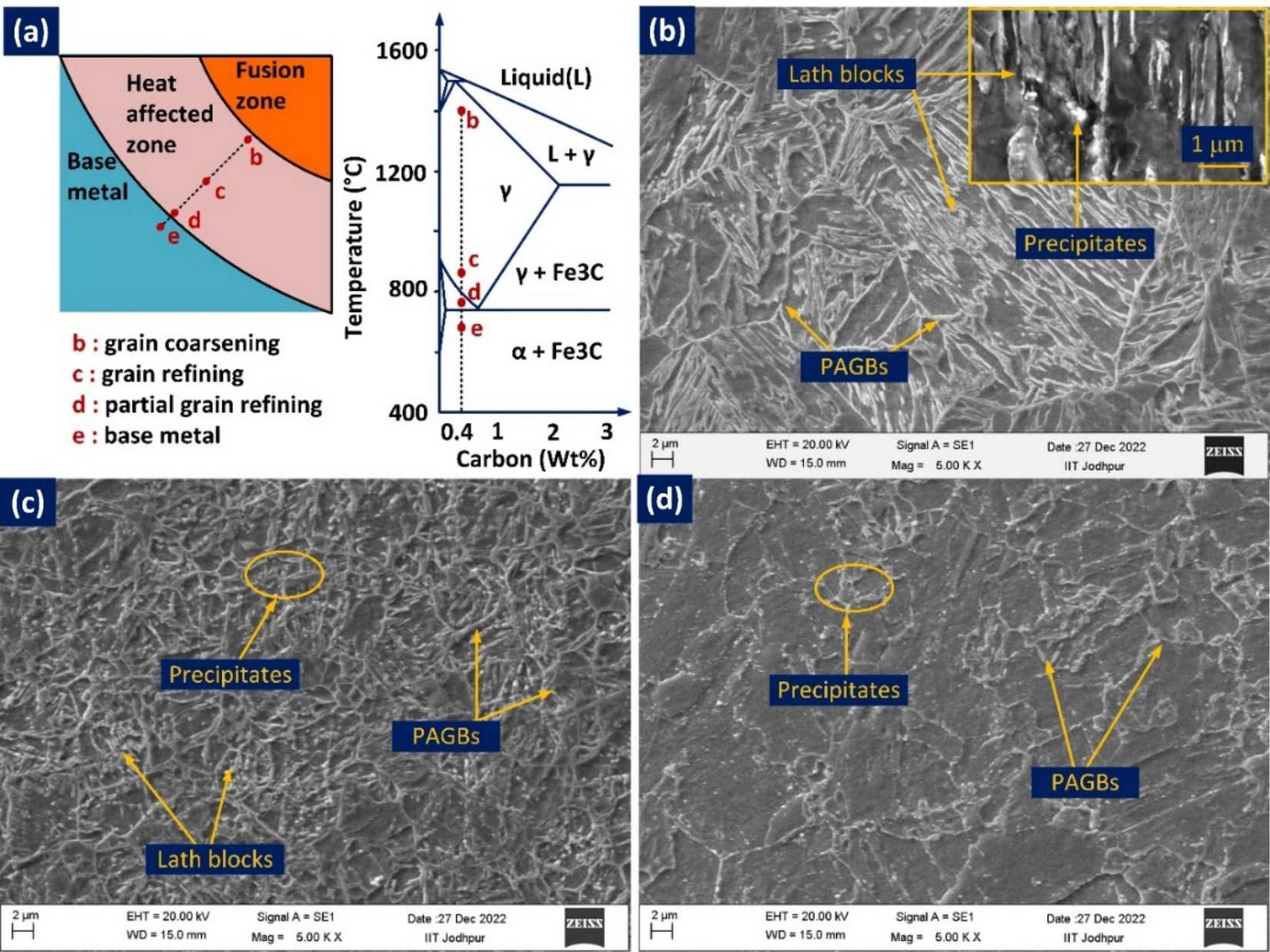

Figure 14

HAZs of P92 for NVG welds joint: (a) HAZs in schematic phase diagram showing each location and their corresponding temperature⁶⁰ (b) coarse-grained HAZ (location b), (c) fine-grained HAZ (location c), (d) refined grains HAZ (RGHAZ (location d).
