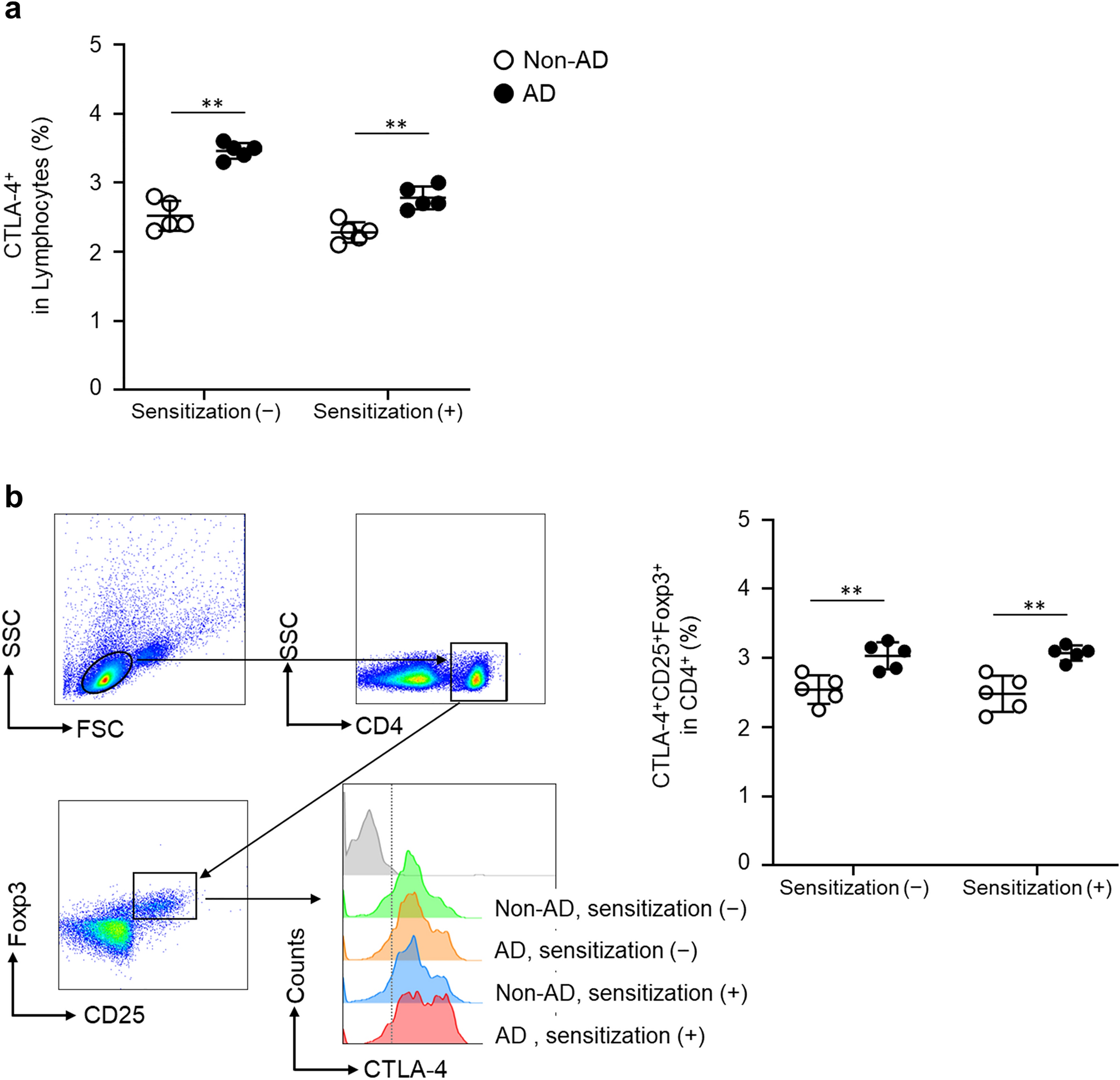

Figure 3
From: CTLA-4 suppresses hapten-induced contact hypersensitivity in atopic dermatitis model mice
CTLA-4+Treg cells increased in AD mice. Draining LNs were collected from non-AD and AD mice one day after 0.3% DNFB sensitization. (a) CTLA-4+cells per lymphocyte (b) Representative flow cytometry histogram results (left) and the frequency of CTLA-4+CD25+FoxP3+Treg cells per CD4+. Data were expressed as the mean values ± SD (n = 5) and represented two independent experiments with similar results. *p < 0.05, **p < 0.01 between indicated groups.
