Figure 2 | Scientific Reports

Figure 2

From: Unprecedented recent regional increase in organic carbon and lithogenic fluxes in high altitude Pyrenean lakes

Figure 2

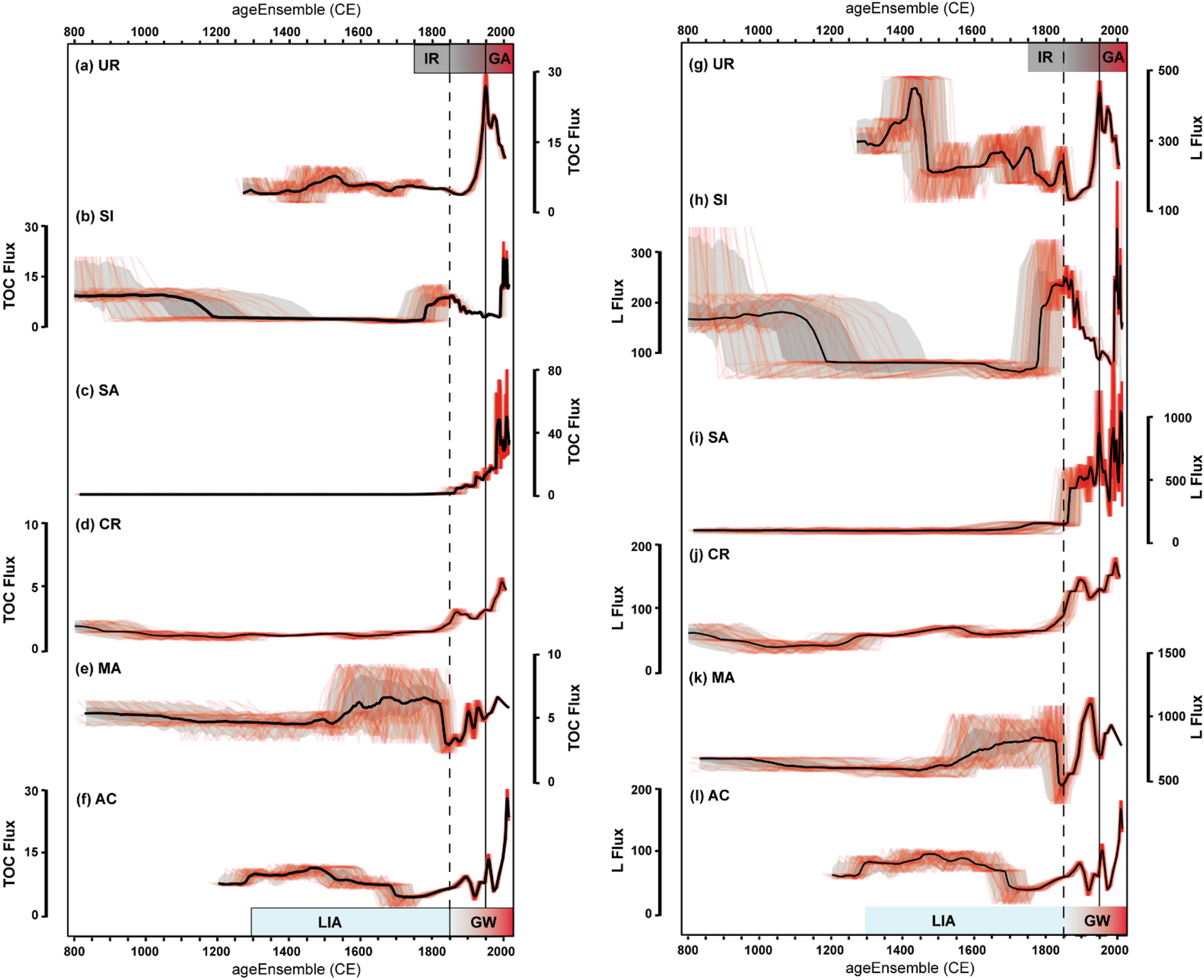

Lithogenic and TOC fluxes for the last 1200 years in the studied lake sequences. The climate phases (Little Ice Age, LIA and Recent Global Warming, GW) and the global change phases (Industrial Revolution, IR and Great Acceleration, GA) are also indicated. The median estimate is shown in black, and the 50 % and 95 % highest-probability density regions are shown in dark and light gray. Random age-uncertain ensemble members are shown in red.
