Figure 6

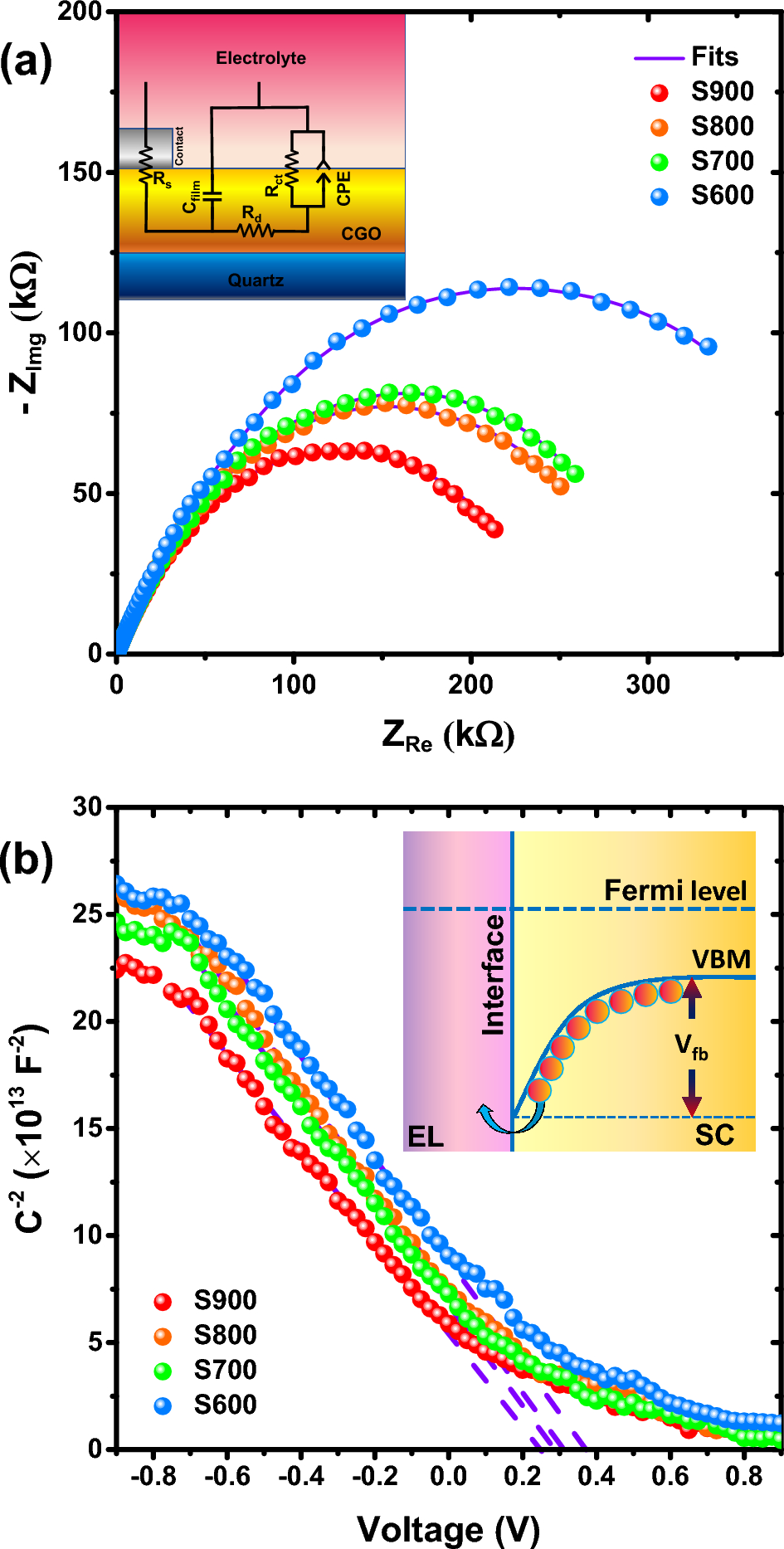

(a) Nyquist plots, and (b) Mott-Schottky analysis for S600-S900 samples attained by a conventional three-electrode electrochemical cell in Na2SO4 electrolyte. In the inset the applied equivalent circuit and the concept of flat-band voltage are depicted.
