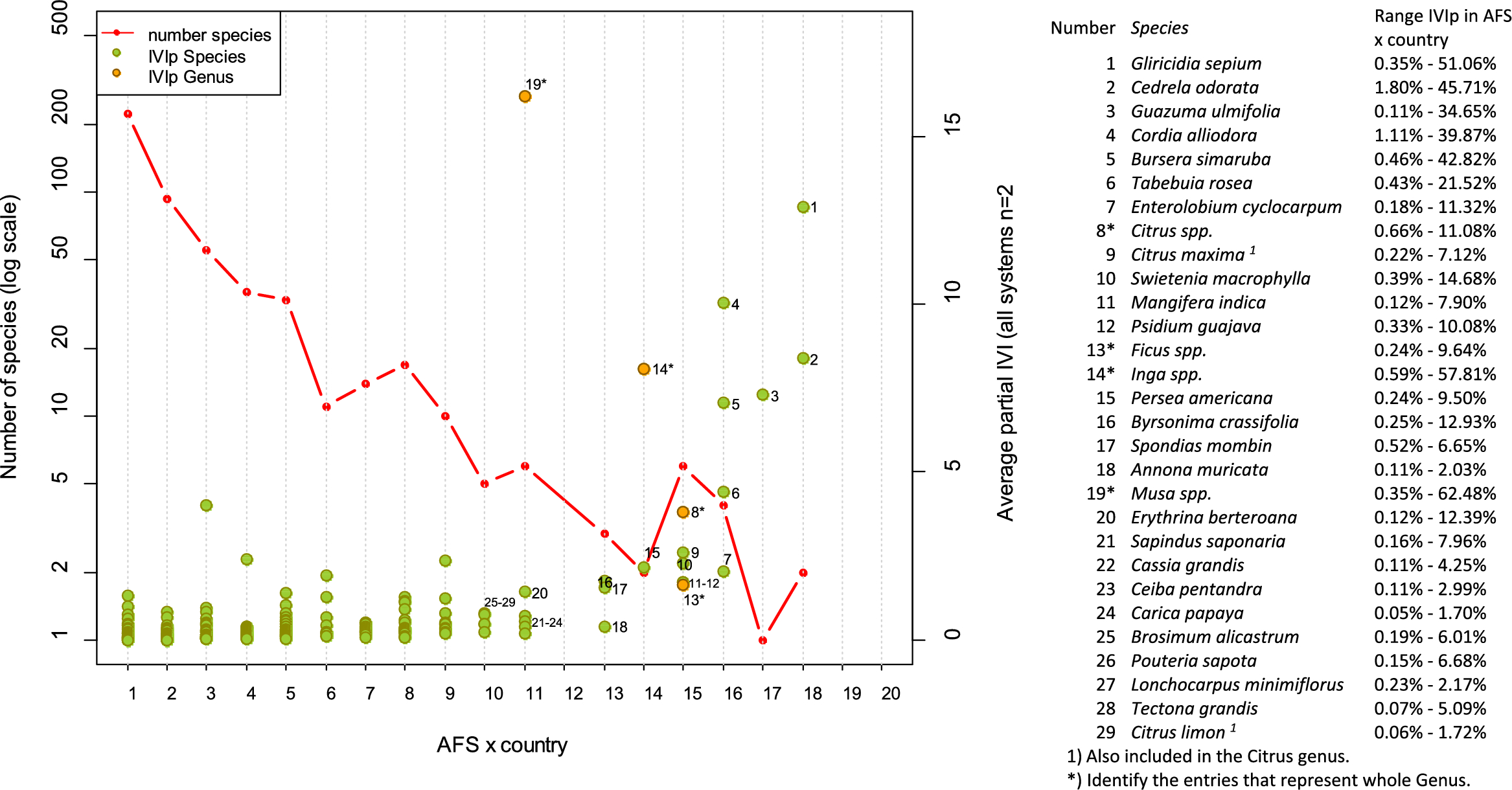

Figure 3
Number of species and average partial IVI partial values (IVIp) per possible AFS × country combinations. The X-axis represents the number of AFS × country combinations possible. Since data for the four AFS was not available in all six countries, n AFS × country = 20 in this study. Red dotted line: number of species (plotted in a log10 scale, left Y axis) that were present in different AFS × country combinations. Dots in light green represent IVIp for each species across all possible AFS × country combinations. The dots in orange represent IVIp for four genus with the highest IVIp. Numbers are used to identify the species and genus that were present in at least 10 AFS × country combinations, for each entry also the range of the species IVI partial values is presented in a table. For instance, there were > 200 species present in only one AFS × country combination, while there were two species (Gliricidia sepium and Cedrela odorata) present in 18 AFS × country combinations. Gliricidia sepium had an IVIp of 13% (with IVIp values in different AFS × country combinations that range between 0.35 and 51.06%).
