Figure 1
From: AI aided workflow for hip dysplasia screening using ultrasound in primary care clinics

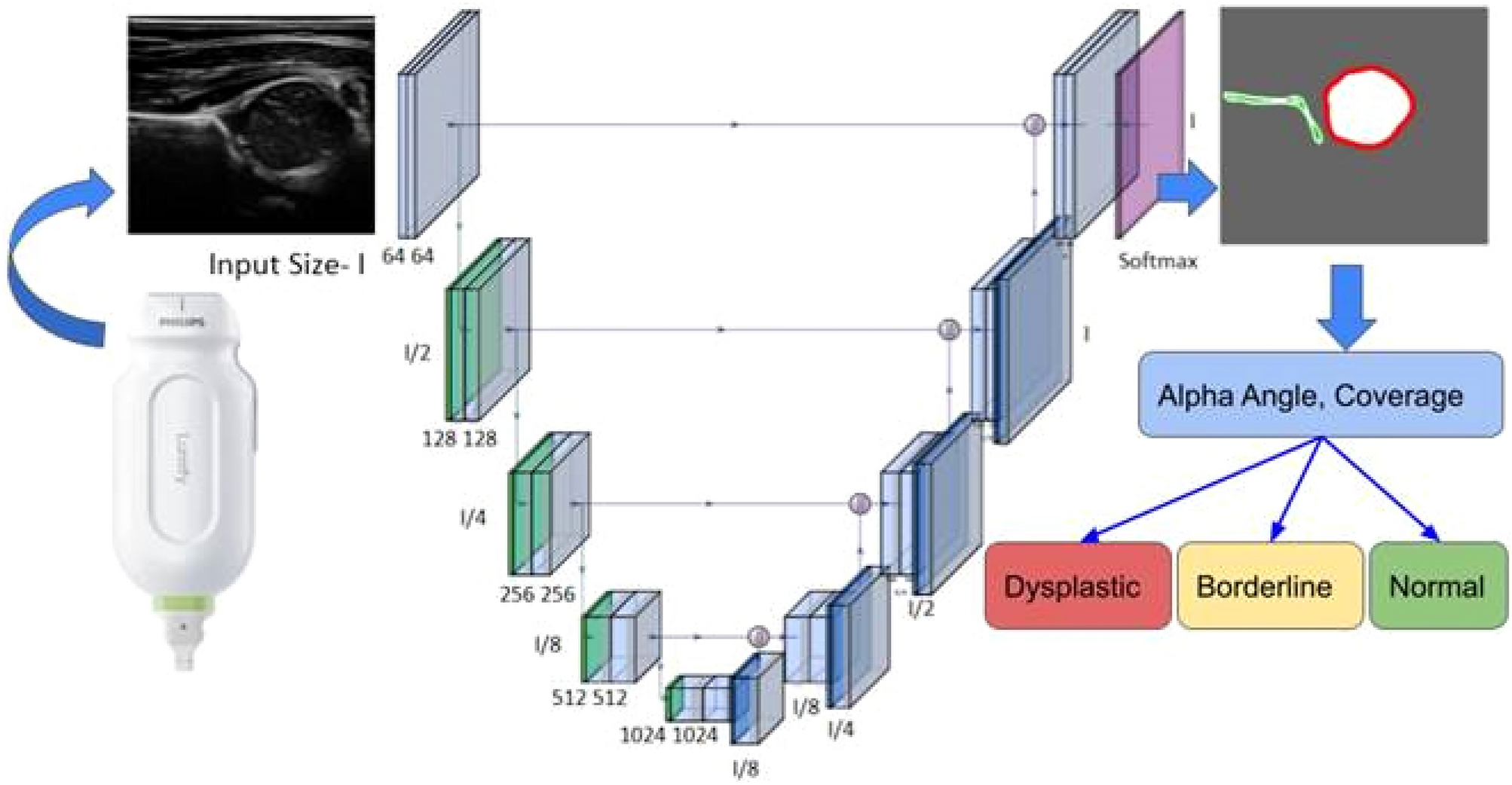

Schematic diagram of the U-Net-like CNN model used in MEDO-Hip. The CNN takes ultrasound images as input and returns a segmented image identifying key anatomic landmarks. Geometric measurements from segmented images are used to generate decision support/management advice.
