Figure 2 | Scientific Reports

Figure 2

From: Terfezia boudieri and Terfezia claveryi inhibit the LPS/IFN-γ-mediated inflammation in RAW 264.7 macrophages through an Nrf2-independent mechanism

Figure 2

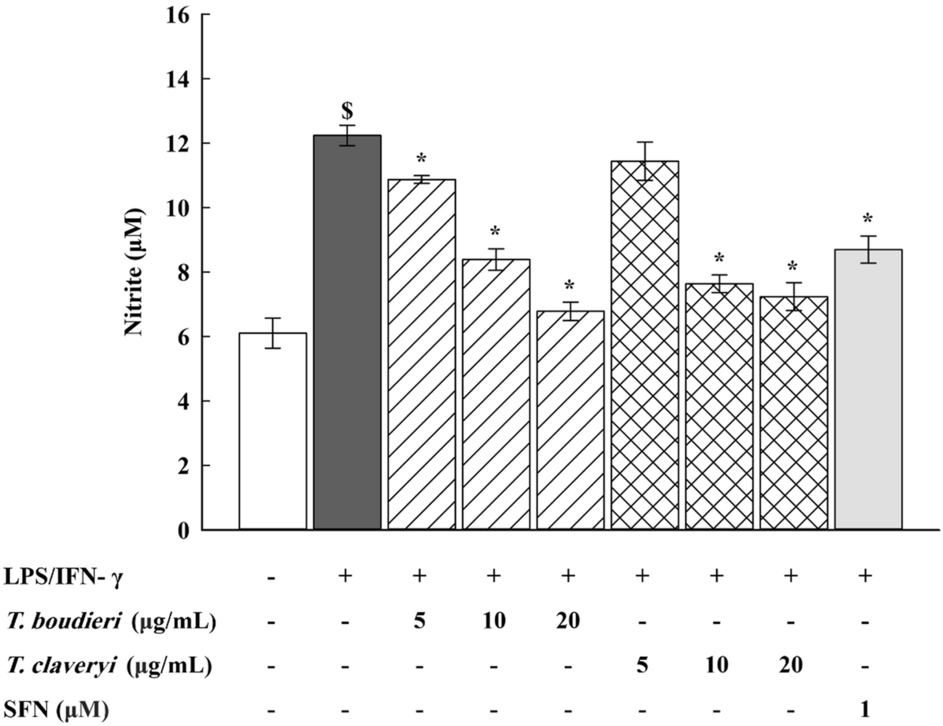

Effect of T. boudieri and T. claveryi extracts on nitrite production in LPS/IFN-γ-stimulated RAW 264.7 cells. RAW 264.7 cells were stimulated with LPS/IFN-γ (100 ng/10 U/mL) and co-incubated with T. boudieri and T. claveryi extracts at concentrations of 5, 10, and 20 µg/mL for 24 h. SFN (1 µM) was used as a positive control. Nitrite levels were analyzed by the Griess Reagent Kit. Data are expressed as mean ± SEM (n = 8). Statistical significance was calculated by one-way ANOVA followed by Student–Newman–Keuls post-hoc test. $P < 0.05 versus control. *P < 0.05 versus LPS/IFN-γ.
