Figure 13

From: Seismic characteristics and AVO response for non-uniform Miocene reservoirs in offshore eastern Mediterranean region, Egypt

Figure 13

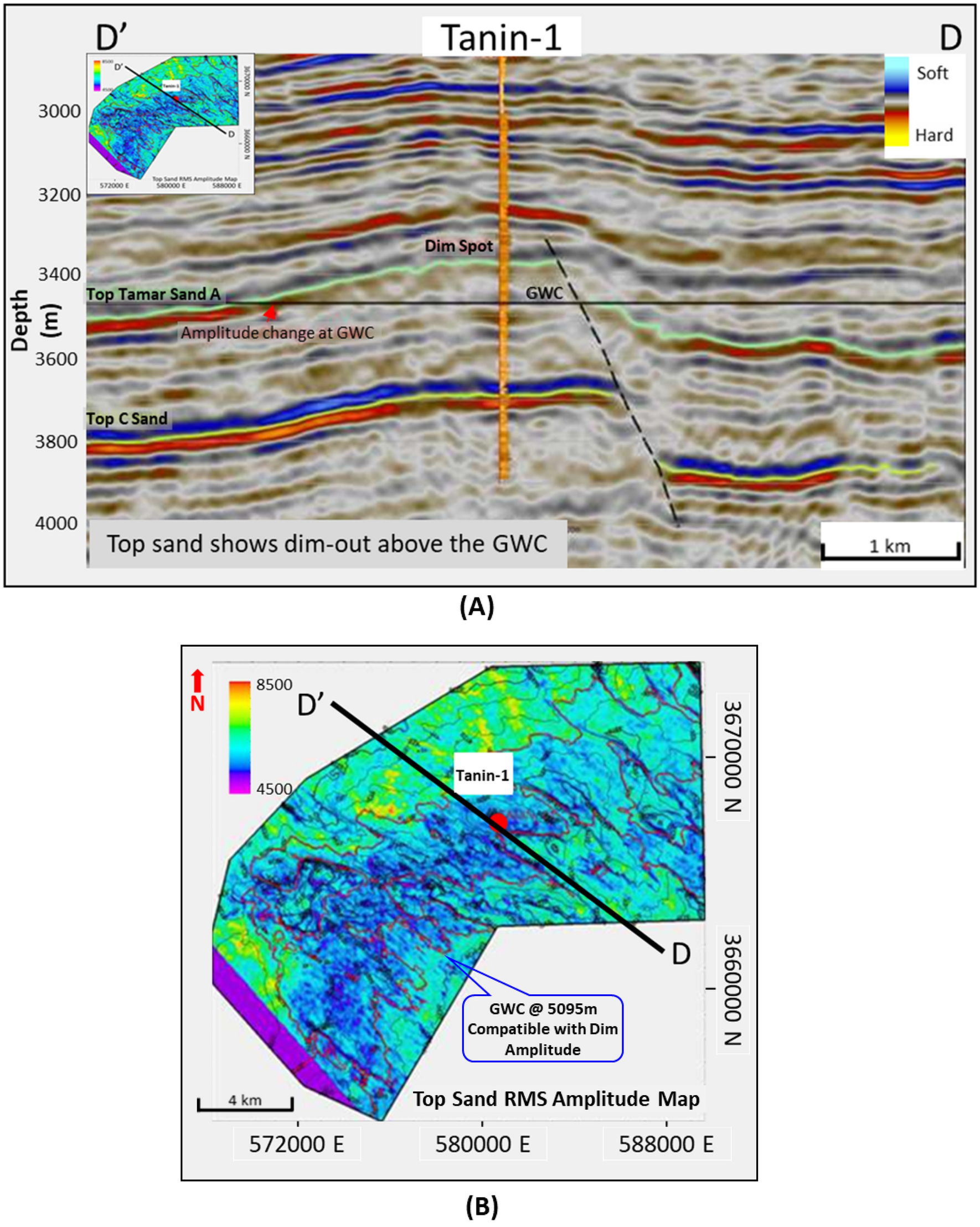

(A) DD’ Seismic section across Tanin Early Miocene (Burdigalian) structure, where the top Tamar sand-A characterized by dim amplitude above the GWC at 5095 mTVDSS as the spill point of the structure, (B) Amplitude map overlayed by structure contour lines which shows the good match of the dim amplitude with the structure spill (Karish and Tanin field development plan77). Created using kingdom 2015 software, https://kingdom.ihs.com/.
