Figure 14

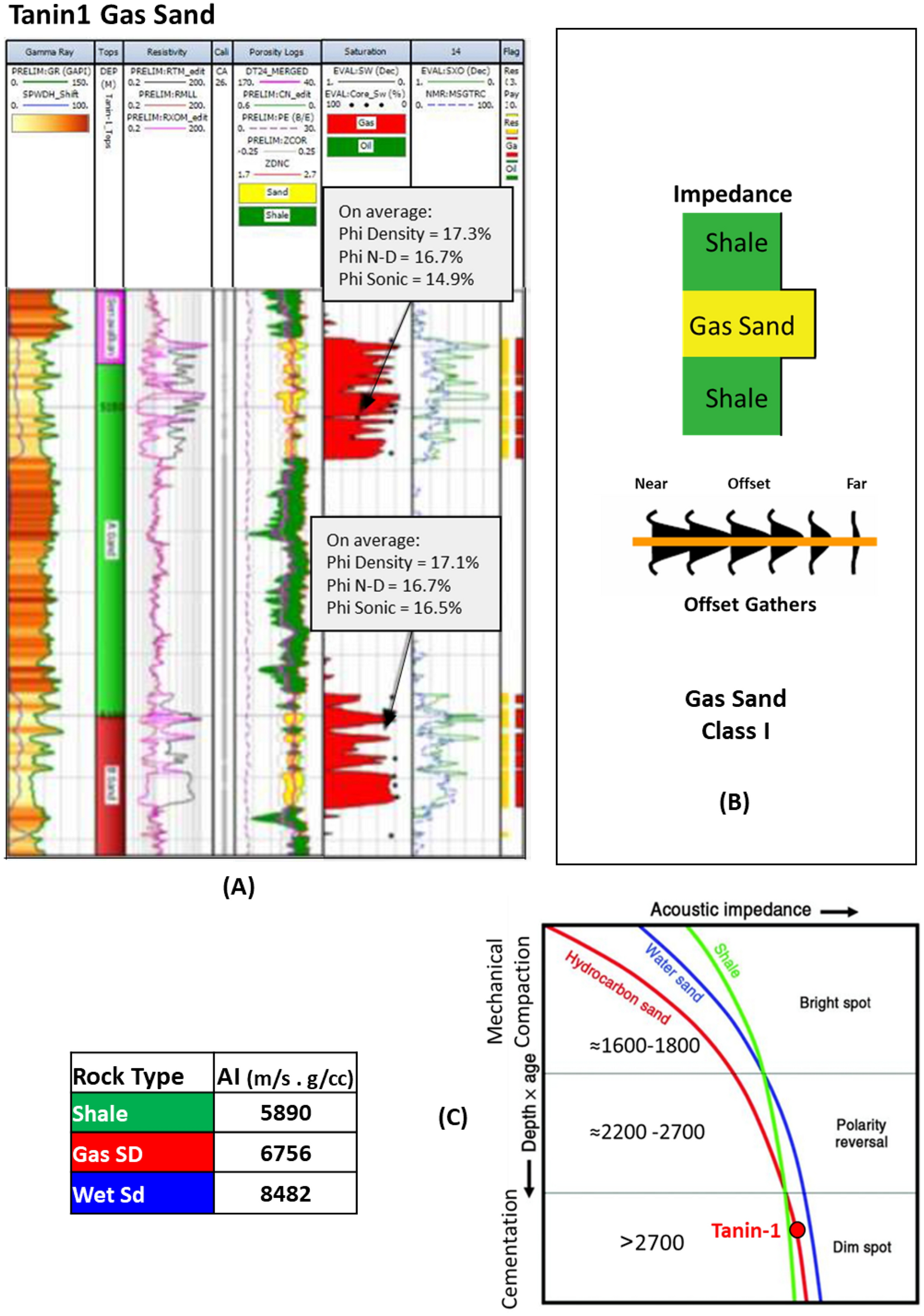

(A) Tanin-1 well Early Miocene gas sand evaluation at depth 3310 m, (B) Schematic form shows the impedance and offset gathers of gas sand, (C) Acoustic impedance trends model of Tanin-1 wet & gas sand that plotted within the dim spot zone.
