Figure 7

From: Seismic characteristics and AVO response for non-uniform Miocene reservoirs in offshore eastern Mediterranean region, Egypt

Figure 7

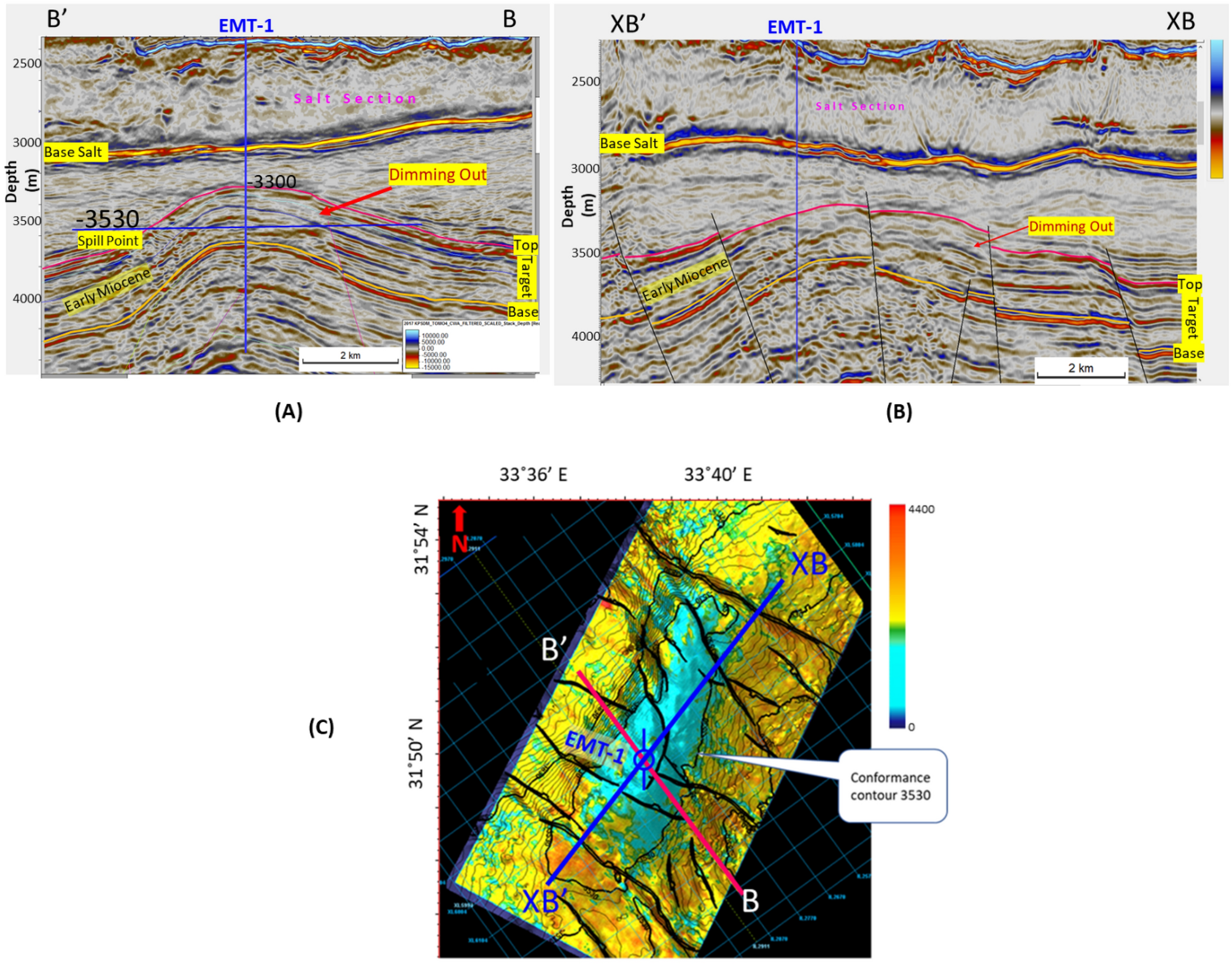

(A) BB’ seismic section as the location shown in Fig. 1, and (B) the perpendicular seismic section XBXB’, show EMT-1 Early Miocene structure, where the top target characterized by dim amplitude above a certain flat event at 3530 m which matches the spill point of the structure, (C) Amplitude map overlayed by structure contour lines, which shows the good match of the dim amplitude with the structure spill. Created in Dana Gas Egypt using Petrel 2020 software, https://www.software.slb.com/products/petrel.
