Figure 8

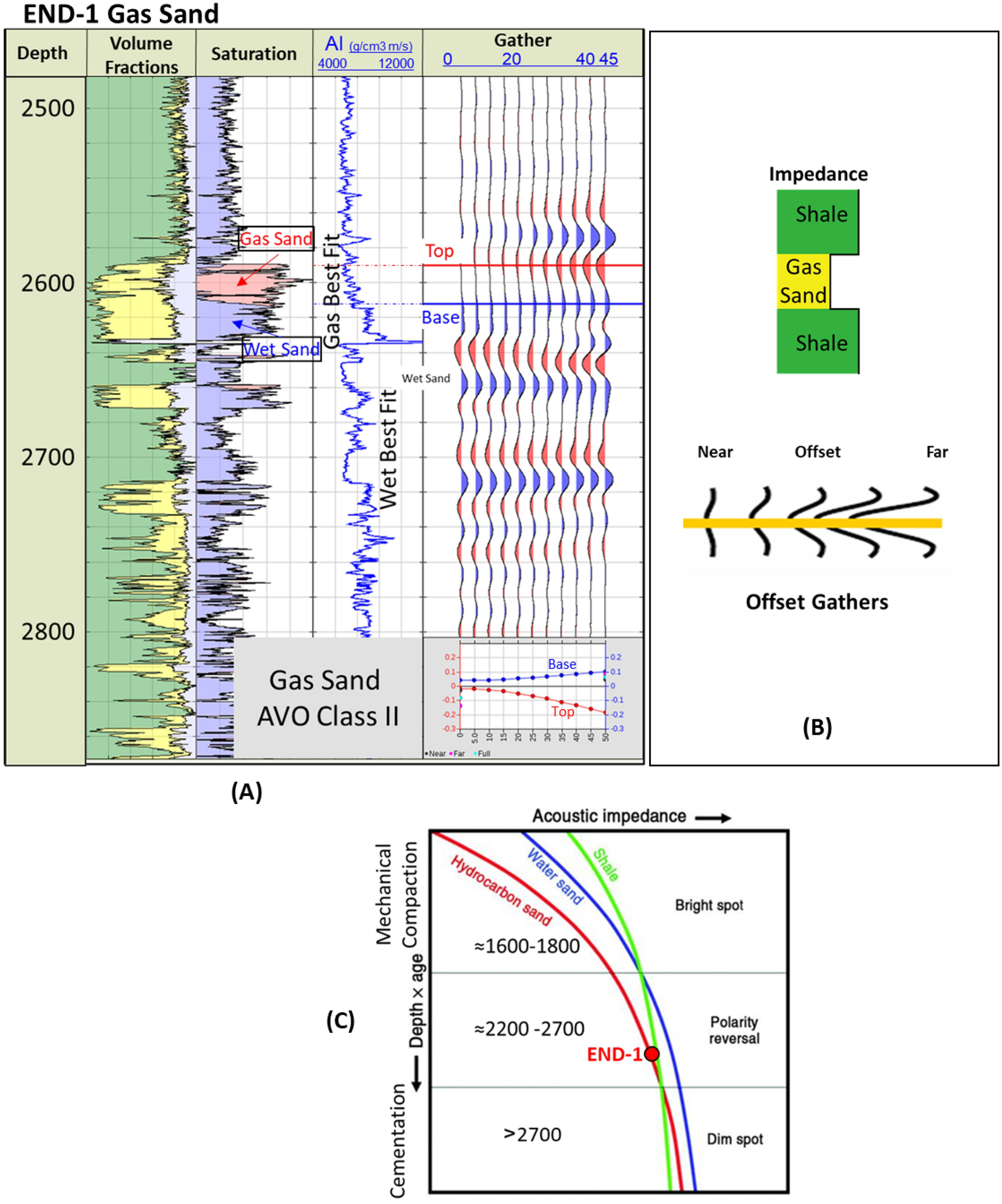

END-1 well Late Miocene gas sand, (A) Synthetic gather analysis shows AVO class II gas sand, (B) Schematic form shows the impedance of the gas sand and offset gathers of AVO class II, (C) Acoustic impedance trends model of END-1 gas sand that plotted within the polarity reversal zone.
