Figure 9

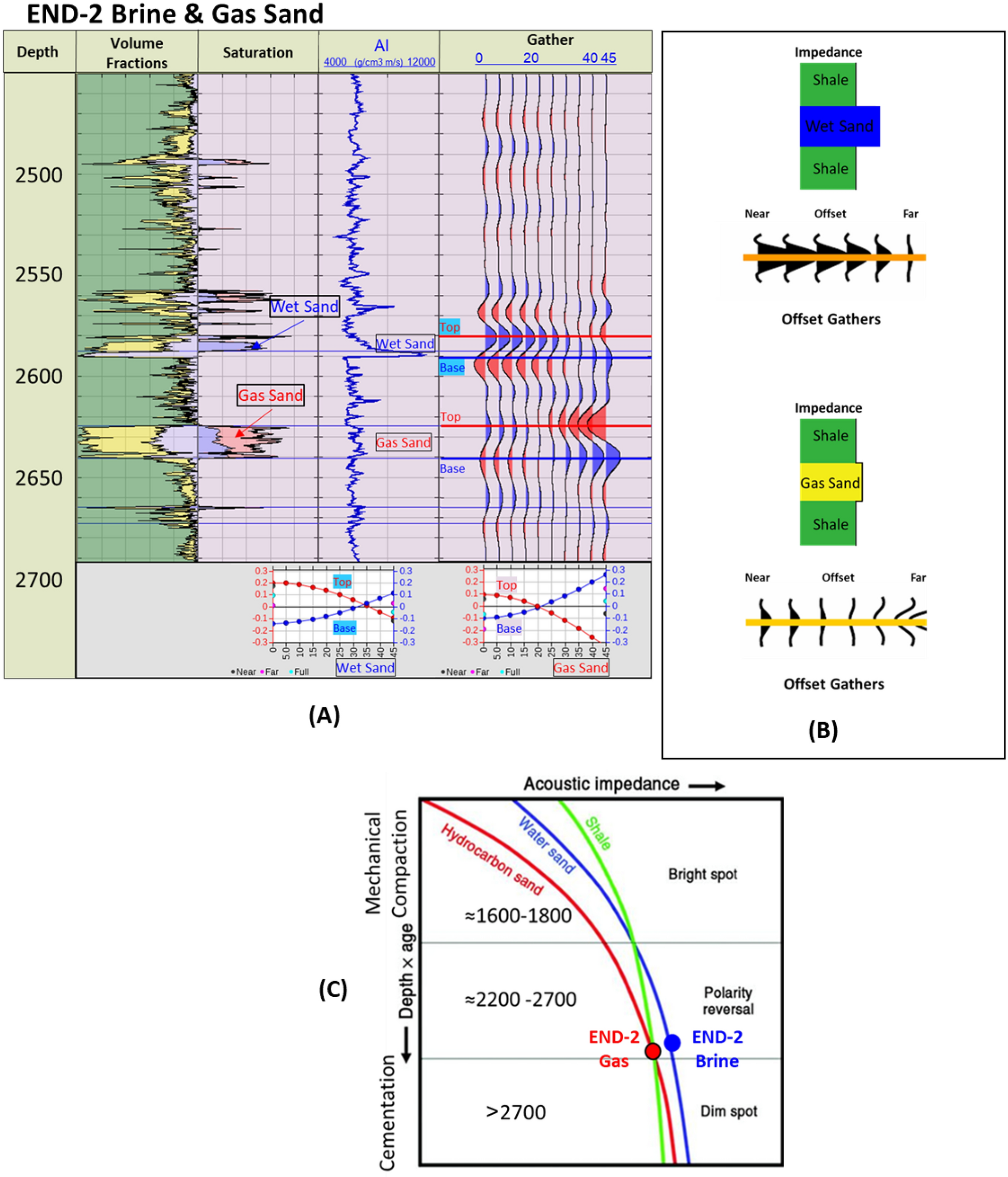

END-2 well Late Miocene wet & gas sand, (A) Synthetic gather analysis shows AVO classes I & IIp respectively, (B) Schematic form shows the impedance and offset gathers of wet & gas sand, (C) Acoustic impedance trends model of END-1 wet & gas sand that plotted within the polarity reversal zone.
