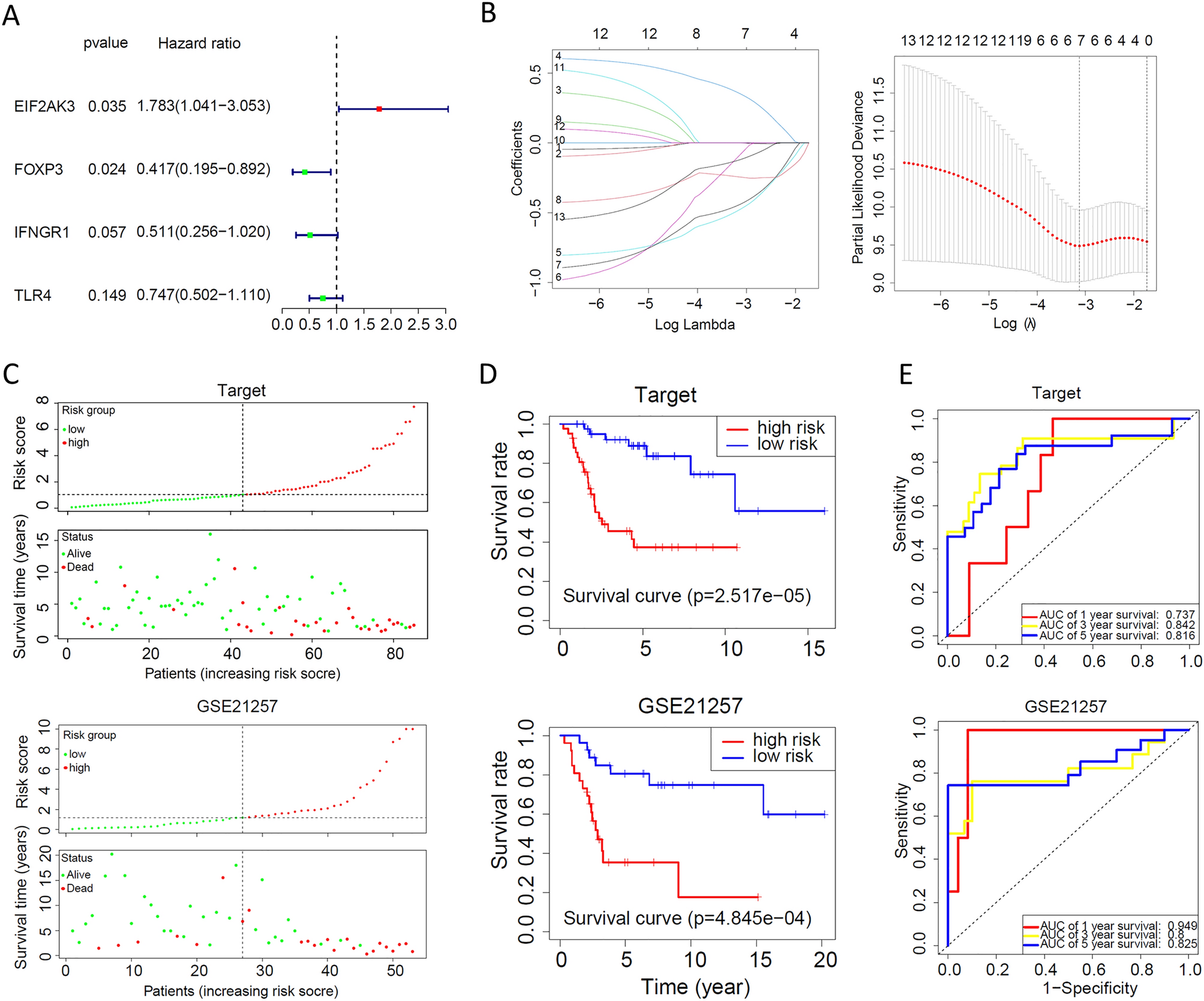

Figure 5
From: Immunogenic cell death-related classifications guide prognosis and immunotherapy in osteosarcoma
Construction and verification of the ICD risk signature. (A) Four ICD-related genes were found to be significantly associated with OS in univariate Cox analysis. (B) LASSO Cox analysis identified 12 genes most associated with OS in the Target and GEO datasets. (C) Risk score distribution and survival status for each patient in the Target and GEO databases. (D) Kaplan‒Meier analysis demonstrates the prognostic significance of the risk model in the Target and GSE21257 cohorts. (E) ROC demonstrates that the diagnostic performance of the risk model for prognosis is good in the Target and GSE21257 cohorts.
