Figure 8
From: A geospatial platform for the tectonic interpretation of low-temperature thermochronology Big Data

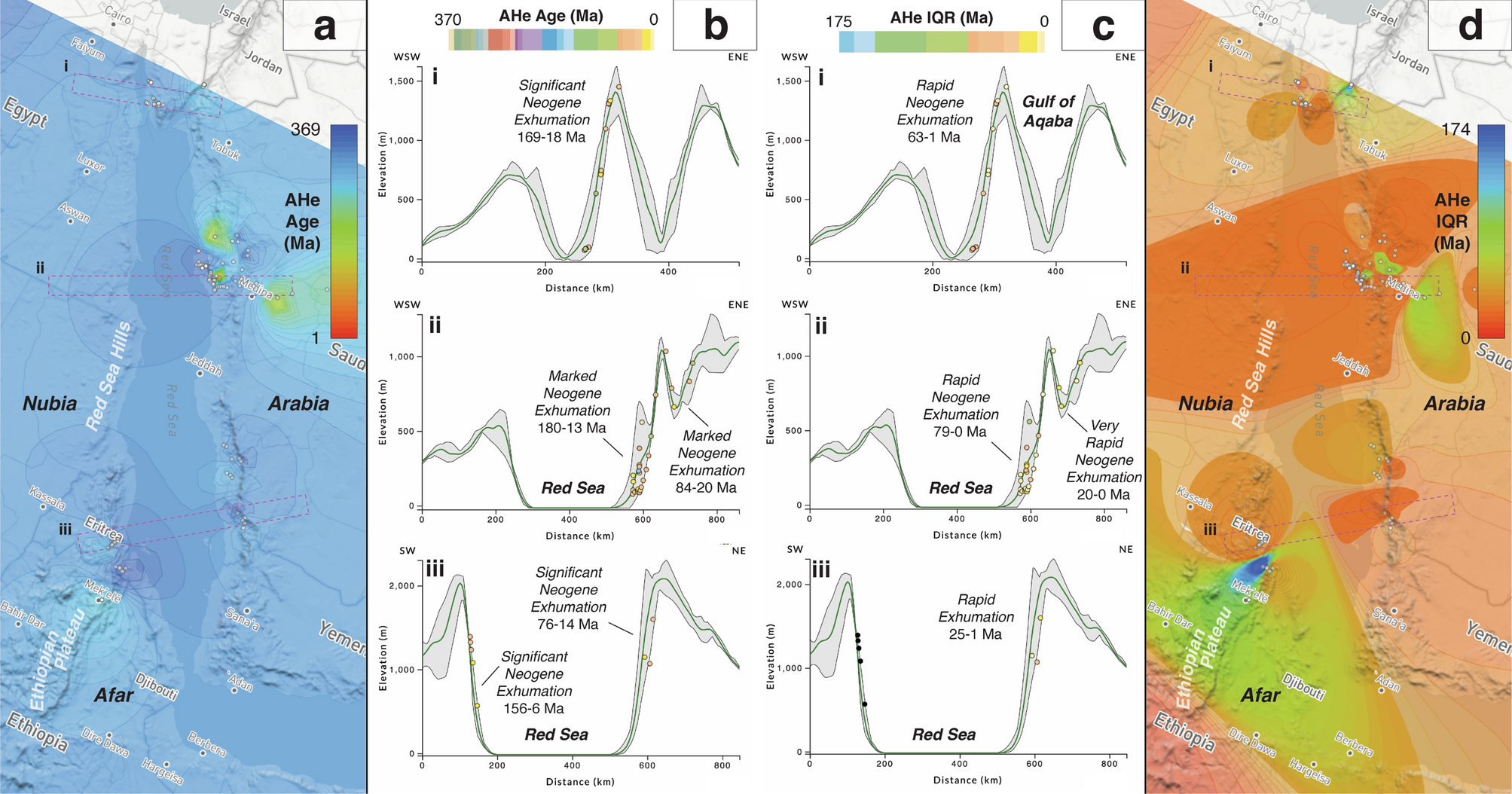

Relationship between apatite (U-Th)/He data and geomorphology along the Red Sea Margins. Data sources are listed in the Supplementary Materials (Table S10). (a, b) Mean apatite (U-Th)/He age and (c, d) interquartile range (IQR) interpolations and swath profiles were exported from AusGeochem before being annotated in a third-party graphics editor program. Black dots in swath profiles indicate no data. All figure elements were exported from AusGeochem (Version 2.20.79) before being combined and annotated in a third-party graphics editor program.
