Figure 1
From: Measuring vibrations on a biofidelic brain using ferroelectret nanogenerator

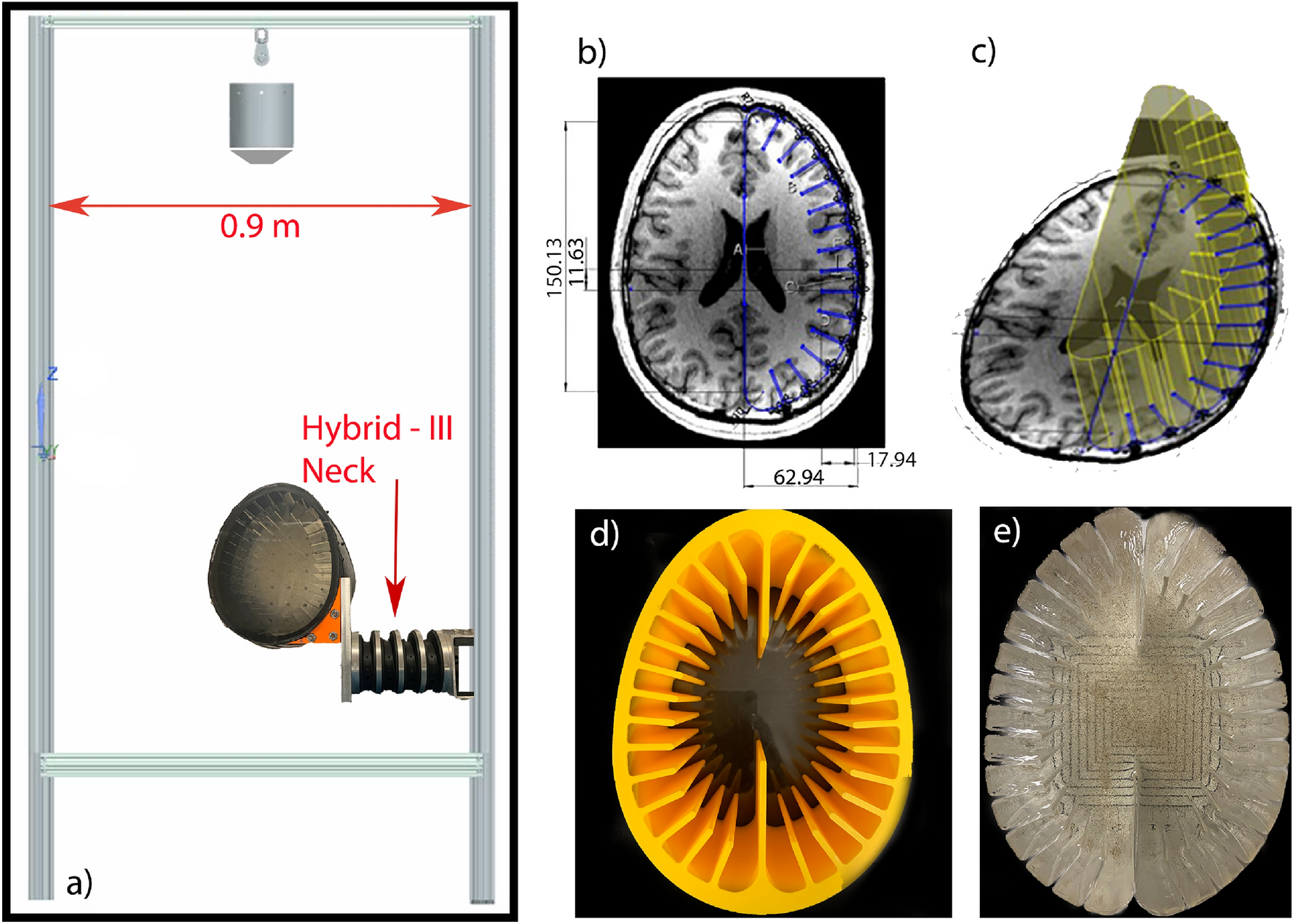

(a) Drop tower along with the placement of phantom and neck arrangement. (b) MRI from a 35-year-old healthy male and (c) extruded section for computer design. Adapted from18. (d) Mold used to create the brain phantom. (e) Brain phantom with embedded finite sand particles.
