Figure 8
From: A pan-cancer analysis of the role of USP5 in human cancers

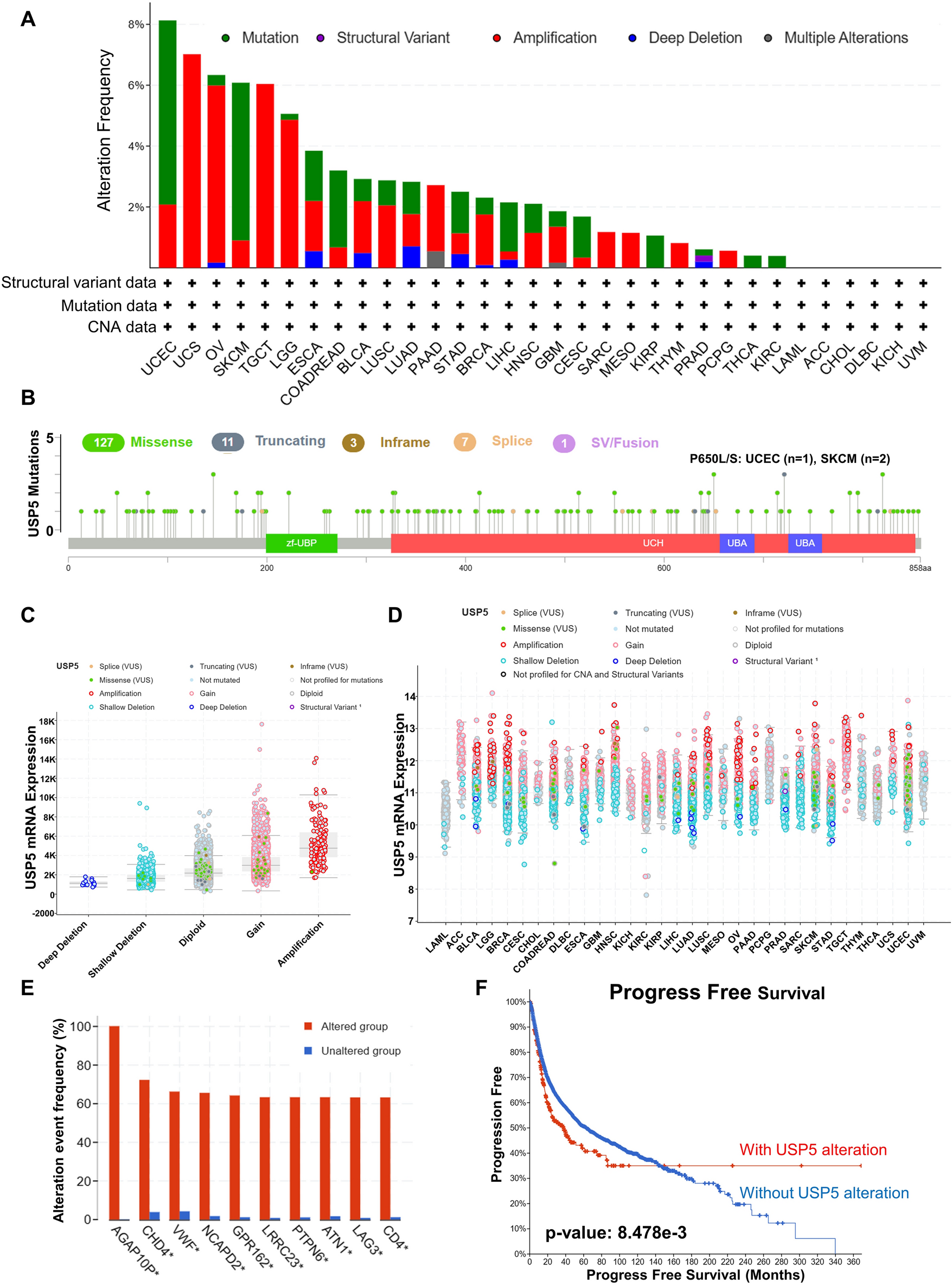

The genetic alterations of USP5 in pan-cancer. (A) Summary of USP5 genetic alteration in TCGA PanCancer Atlas Studies. (B) Mutation types, number and sites of USP5 across protein domains. (C,D) Correlation between the putative CNA of USP5 and its expression in cancers. (E) The related genes alteration frequency in groups with or without USP5 alteration. (F) Correlation between USP5 mutation status and PFS of cancer patients. The genetic mutations analysis of USP5 in pan-cancer was conducted by cBioPortal online platform based on TCGA data.
