Figure 4 | Scientific Reports

Figure 4

From: Self-organizing neural network for reproducing human postural mode alternation through deep reinforcement learning

Figure 4

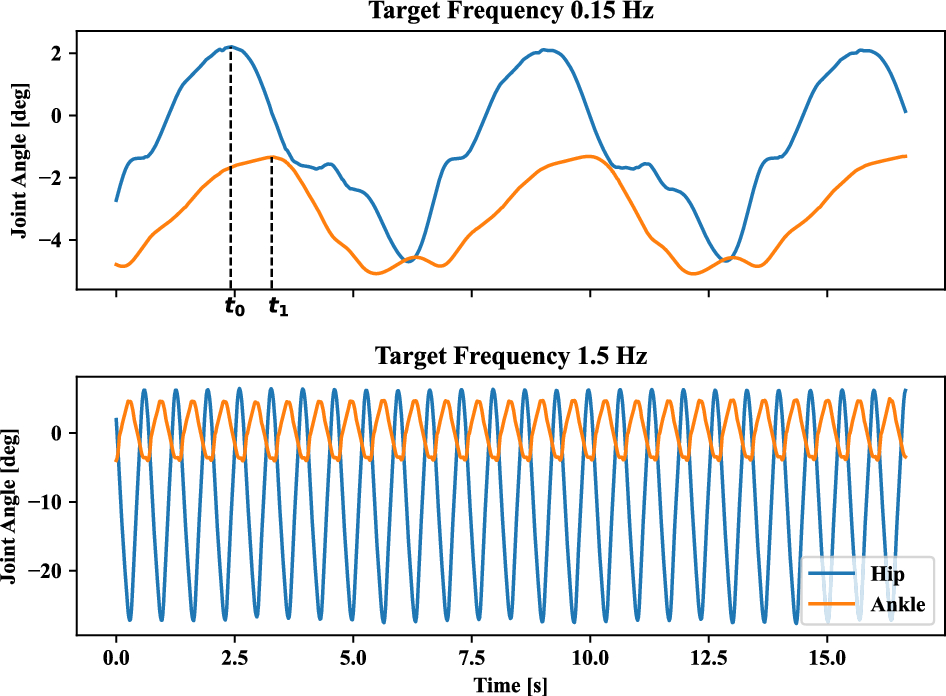

Joint angle of ankle and hip at motion tracking frequency f in Eq. (5) with regard to 0.15 [Hz] and 1.5 [Hz]. Where, energy consumption penalization parameter \(\gamma\) in Eq. (6) is 20. The motion amplitude A of target point in Eq. (5) is 0.1 [m]. Ankle and hip stiffness remains 25 [Nm/rad] and 125 [Nm/rad]. \(t_0\) and \(t_1\) are the timesteps corresponding to the maximum angles of the ankle and hip in the current motion cycle.
