From: The environmental controls on efficiency of enhanced rock weathering in soils

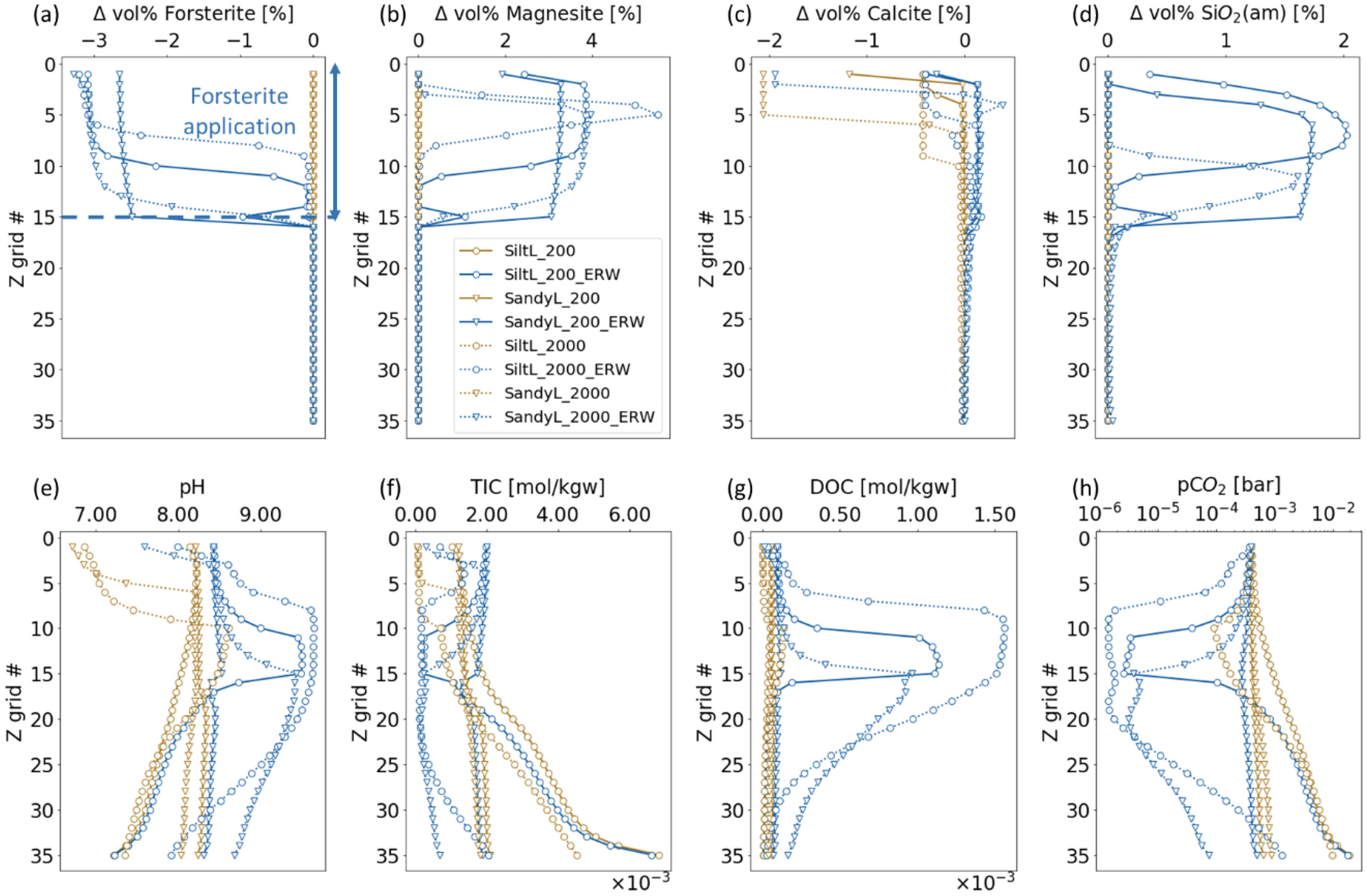

Vertical profiles at year five for an application of forsterite with a specific surface area of 10 m2/g in the top 15 cm for both soil types at both infiltration rates. (a–d) Changes in the volume fractions of key minerals (from left to right: forsterite, magnesite, calcite, amorphous silica), and (e–h) soil water chemistry (from left to right: pH, alkalinity as Total Inorganic Carbon (TIC), DOC as acetate) and CO2 partial pressure [bar].
