Figure 2
From: Biophysical models resolution affects coral connectivity estimates

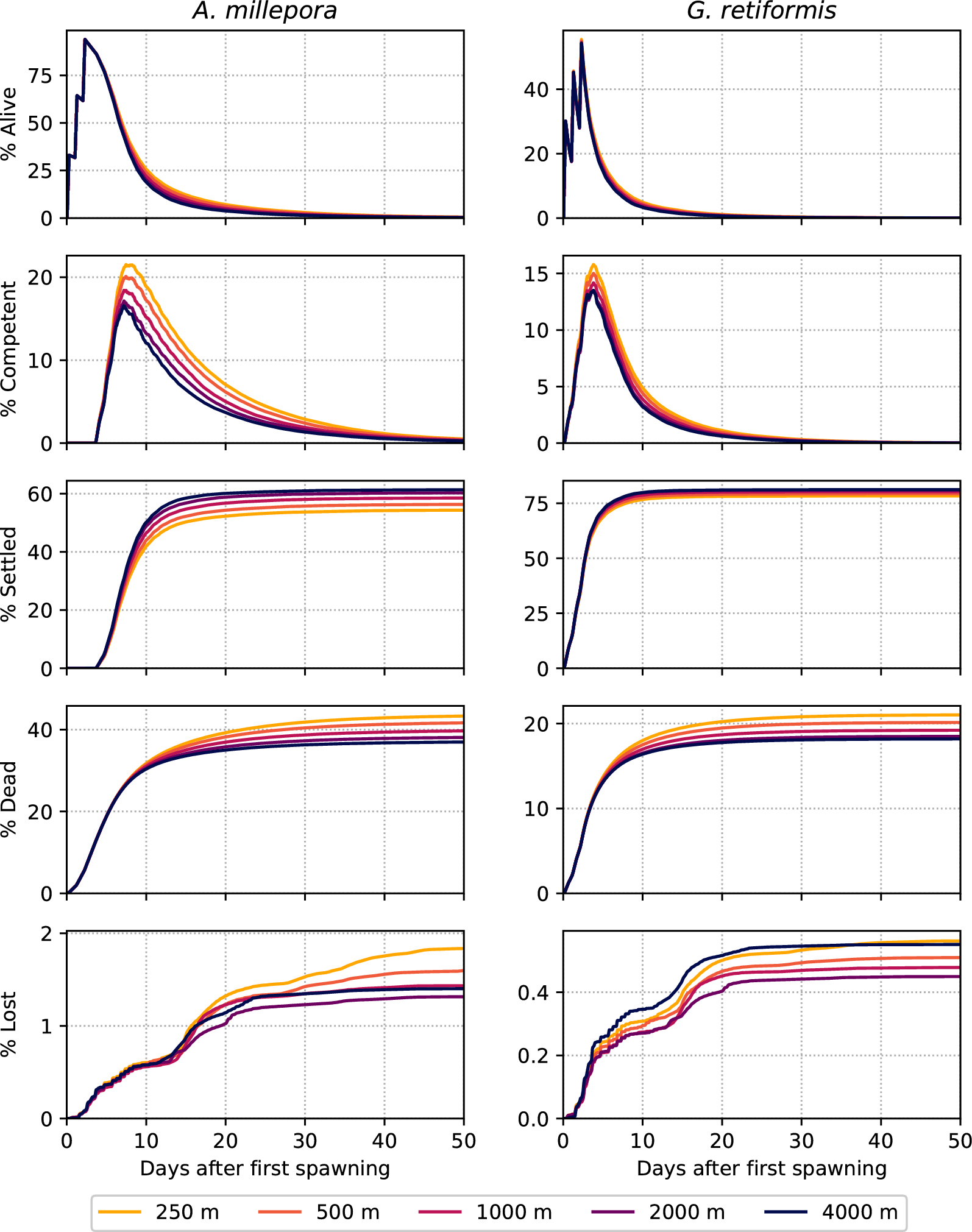

Percentage of larvae in each possible state, namely alive in the water column, alive in the water column and competent, settled, dead, or lost outside the modeling domain. For both species, larvae tend to settle faster on average for coarser resolution models, leading to more dead particles for finer resolution models. The differences between resolutions are however larger for A. millepora than for G. retiformis due to the absence of precompetency period for this second species.
