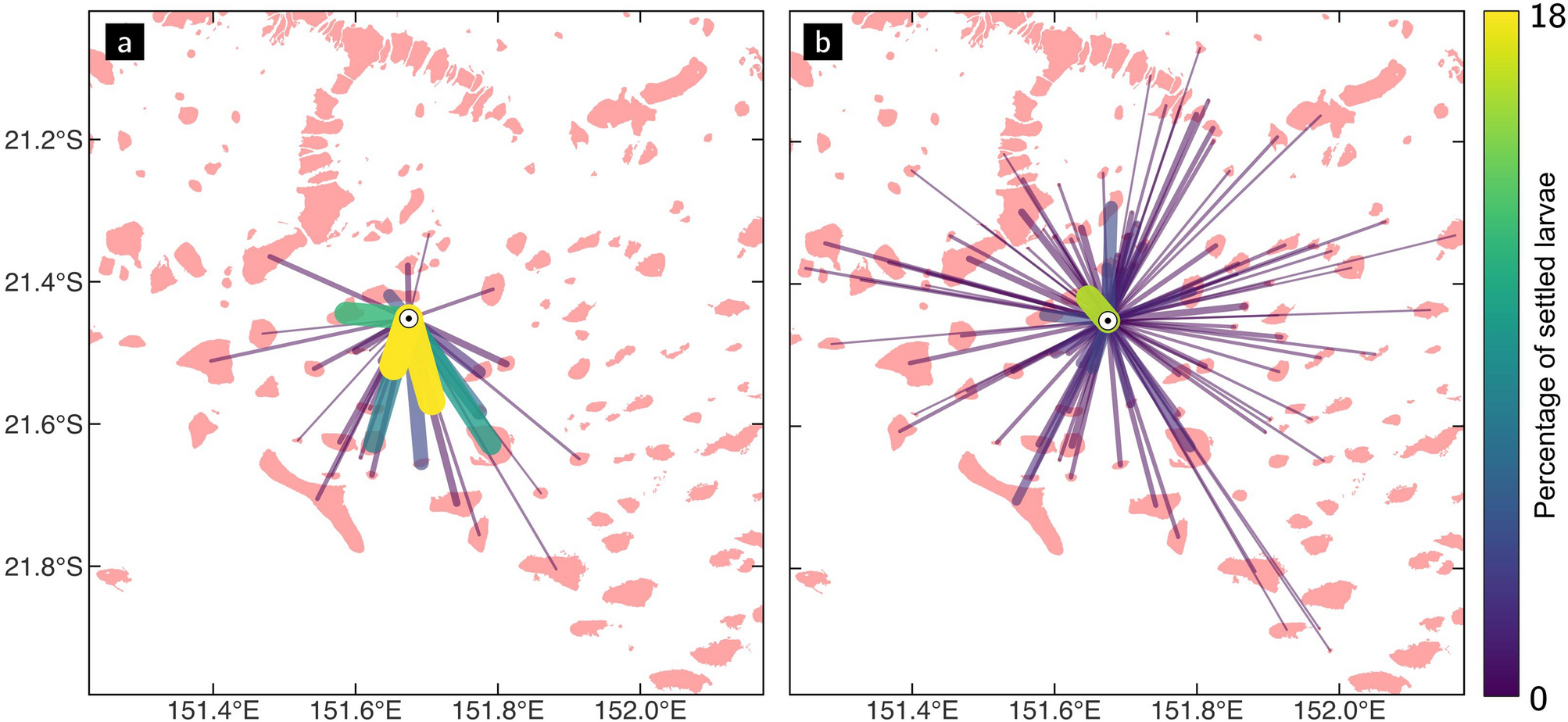

Figure 4
From: Biophysical models resolution affects coral connectivity estimates
Outgoing connections from one particular reef for G. retiformis larvae colour-coded by their strength (i.e., the number of virtual larvae exchanged, normalized by the total number of settled larvae), as simulated on (a) the coarsest 4 km and (b) the finest 250 m resolution. Reefs are represented in pink. The total number of larvae exchanged is about the same in both cases. However, there are more connections of weaker strength on the finest resolution.
