Figure 3

From: Gene expression in bumble bee larvae differs qualitatively between high and low concentration imidacloprid exposure levels

Figure 3

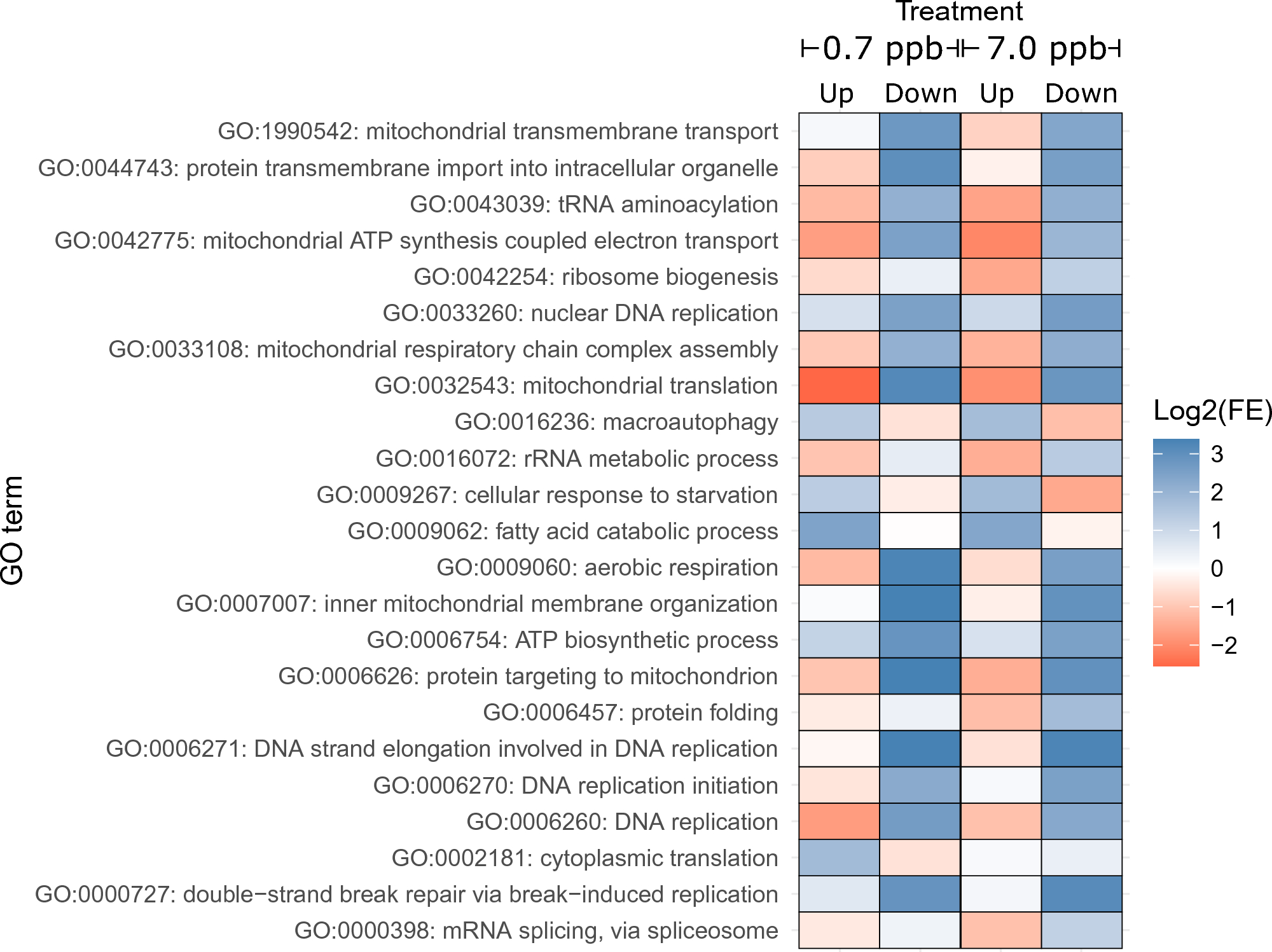

Gene ontology terms enriched in the differentially expressed gene sets. The enriched gene ontology (GO) term names are shown on the Y axis. Tile color indicates values for the logarithm to the base 2 of the fold enrichment of the GO term (i.e., observed count divided by expected count of a specific GO term in the sample). The x-axis shows the up- and down-regulated DEG sets from the low (0.7 ppb) and high (7.0 ppb) imidacloprid treatments. Red tiles represent under-represented GO terms; blue tiles represent enriched GO terms.
