Figure 6 | Scientific Reports

Figure 6

From: Transcriptome and metabonomics combined analysis revealed the energy supply mechanism involved in fruiting body initiation in Chinese cordyceps

Figure 6

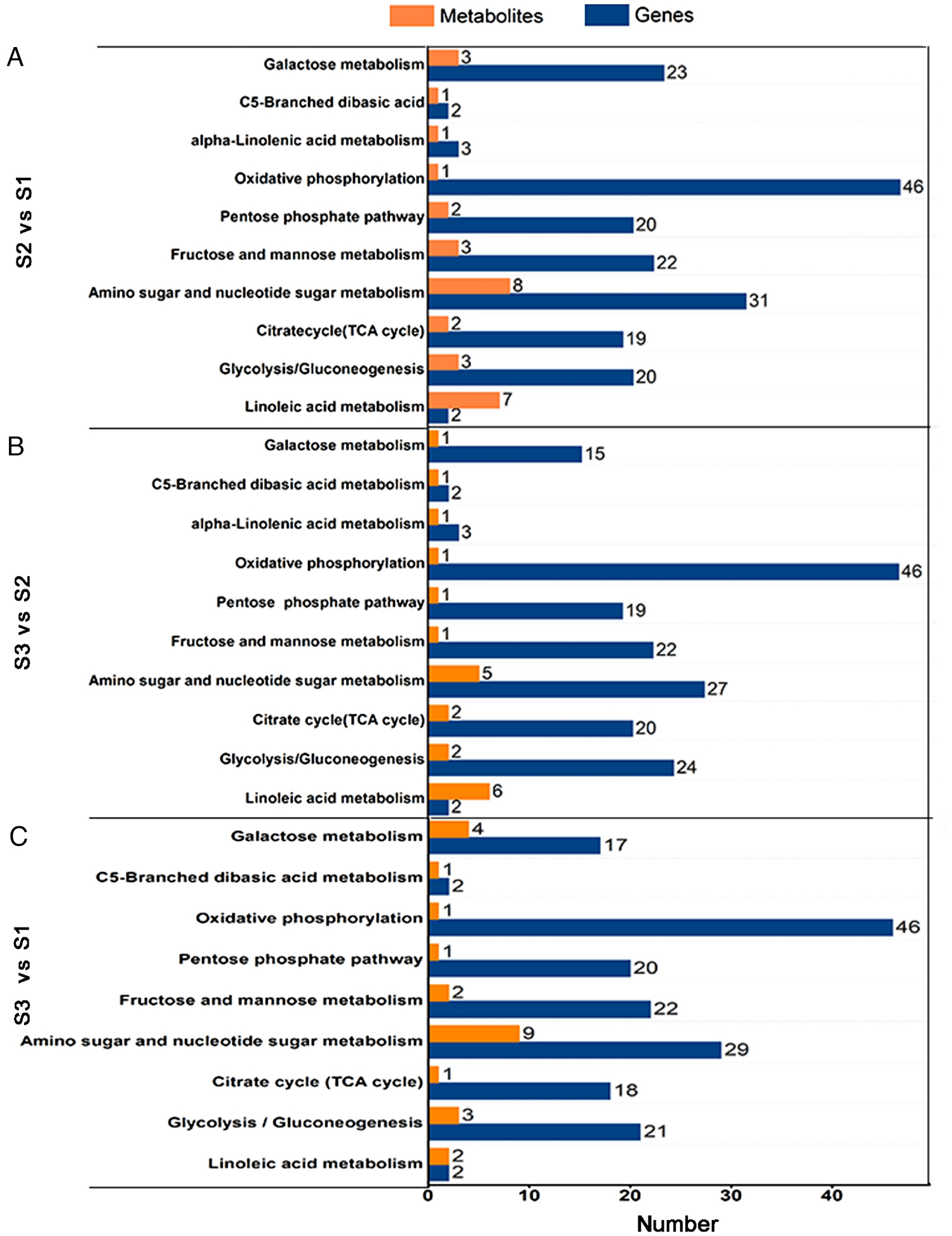

Integrated analyses of the transcriptome and metabolome of the KEGG pathways related to sugars and lipid. As shown in Suppl. Table S4. Three comparison groups of S2 vs S1 (A), S3 vs S2 (B), and S3 vs S1 (C) were selected. The specific name of the KEGG pathway was provided on the left of the bar chart, and the numbers of relative DEGs and DAMs were on the right of the bar. KEGG enrichment pathways were created in http://www.kegg.jp/kegg/kegg1.html.
