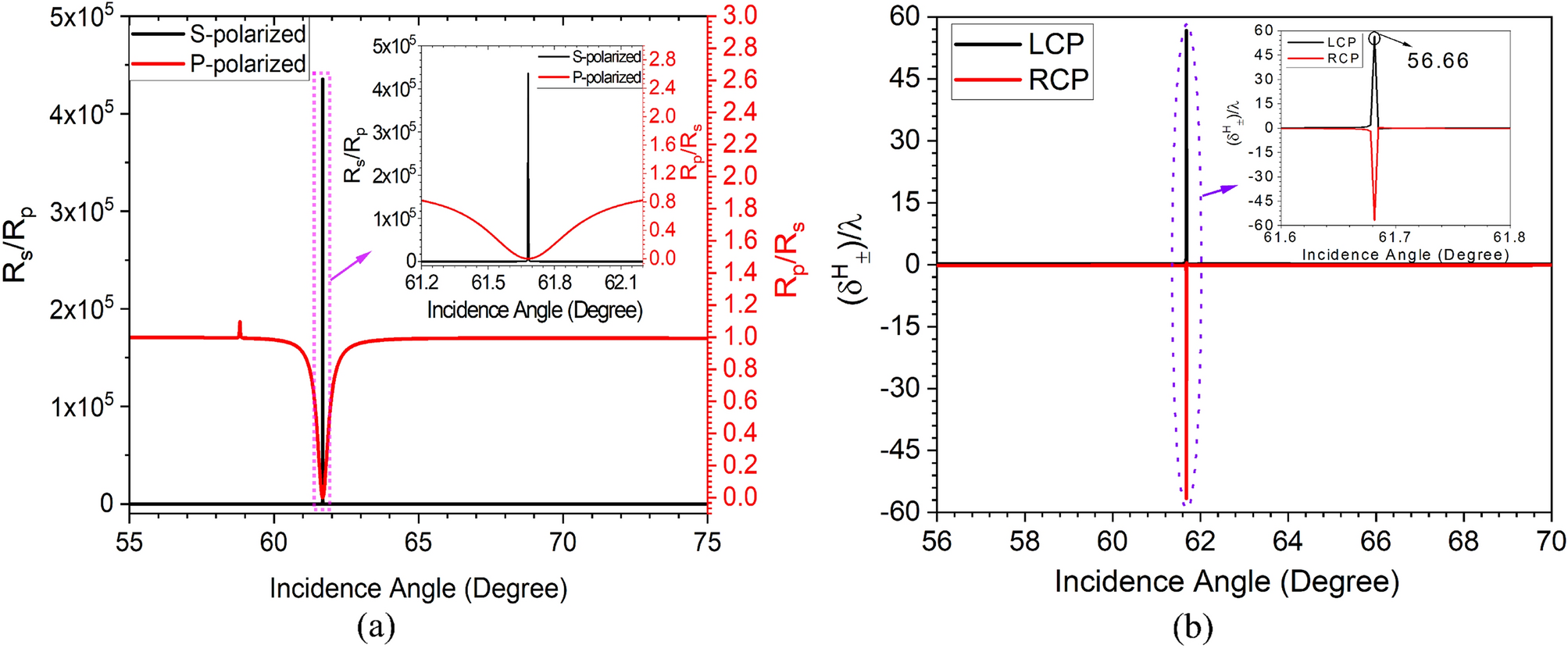

Figure 7
From: Nanophotonic resonator assisted photonic spin Hall enhancement for sensing application
(a) Fresnel Reflection ratio for the proposed structure at \(\lambda \)= 632.8 nm and \(\theta _{i}\)= 61.68\(^{\circ }\), and (b) enhanced PSHE after optimization in defect layer thickness.
